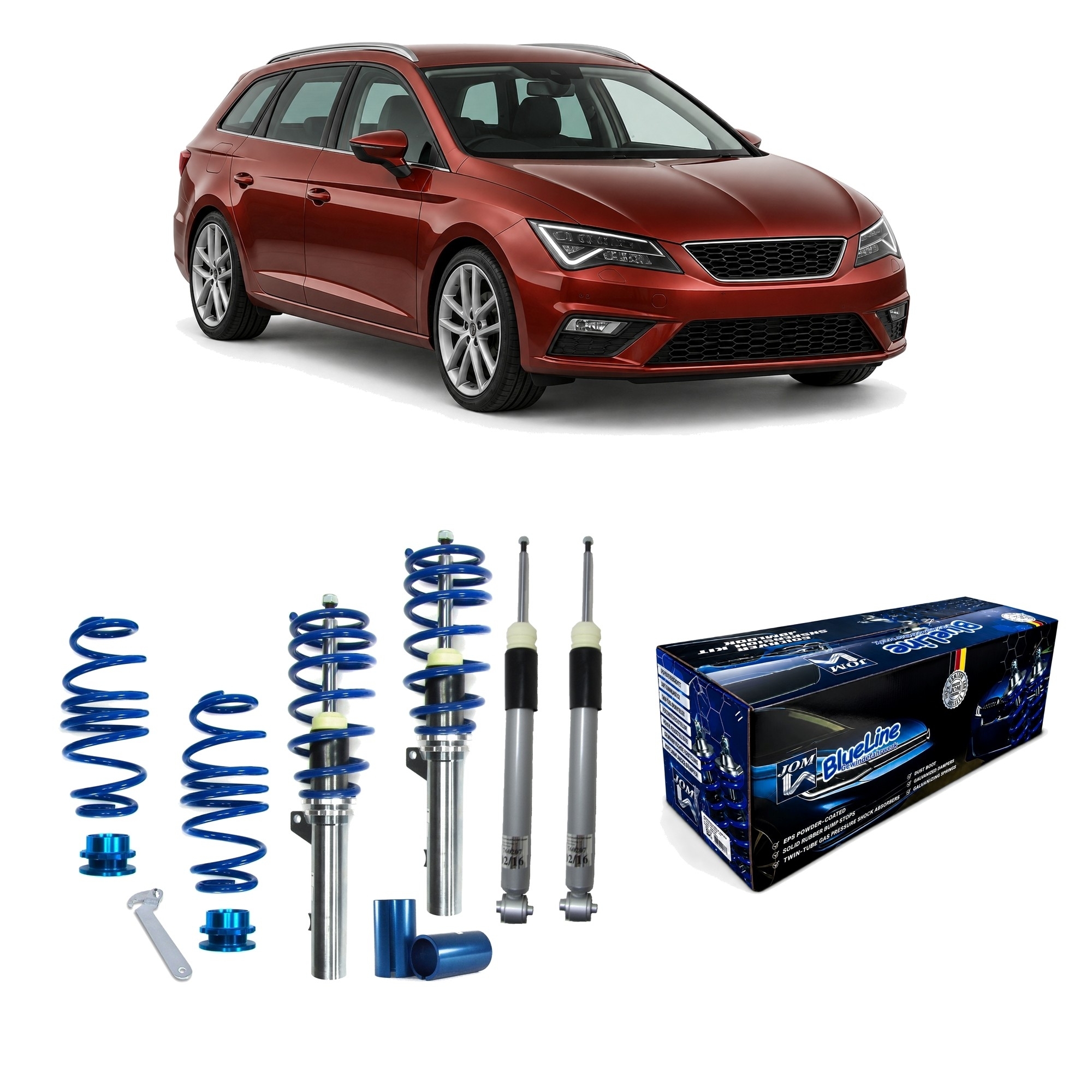

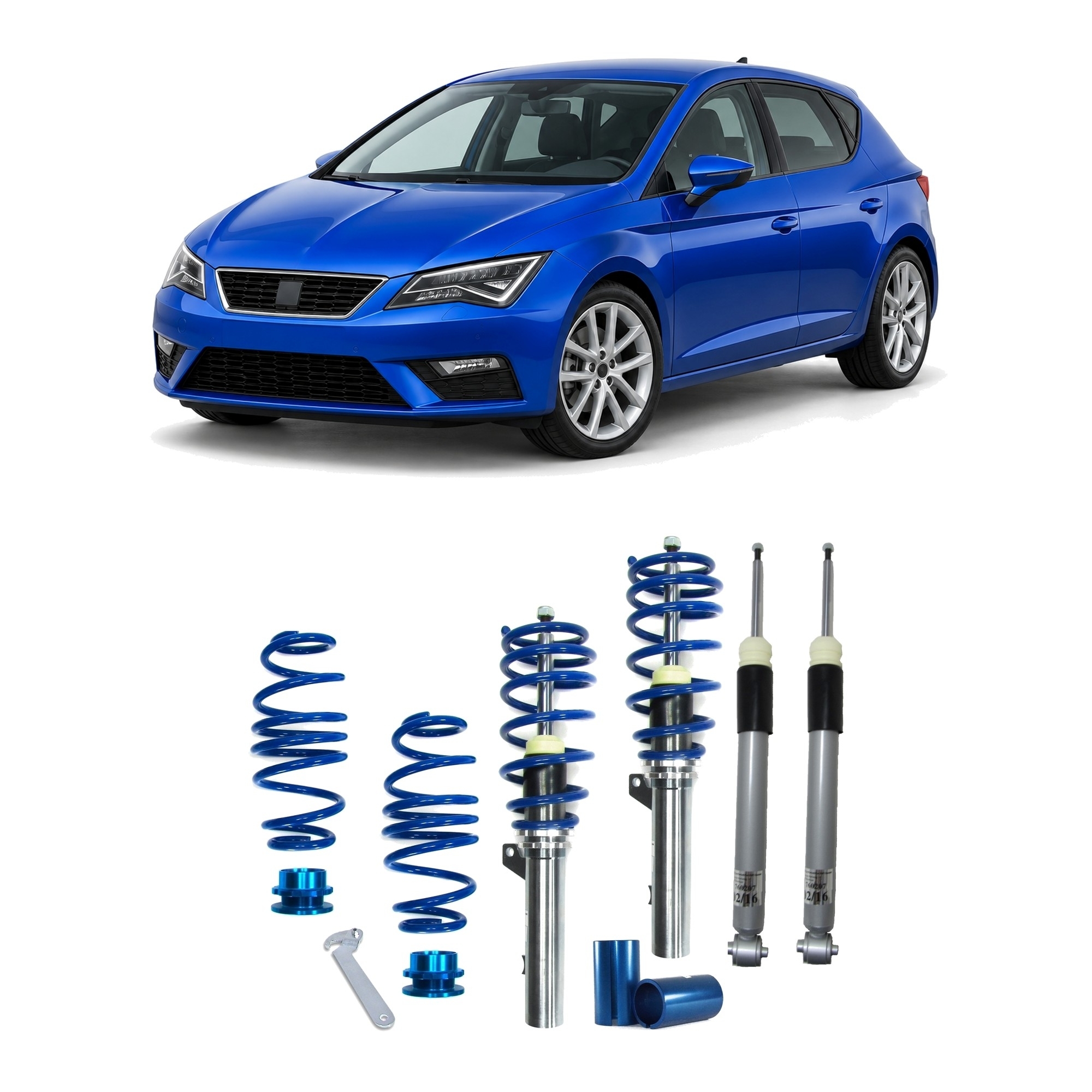

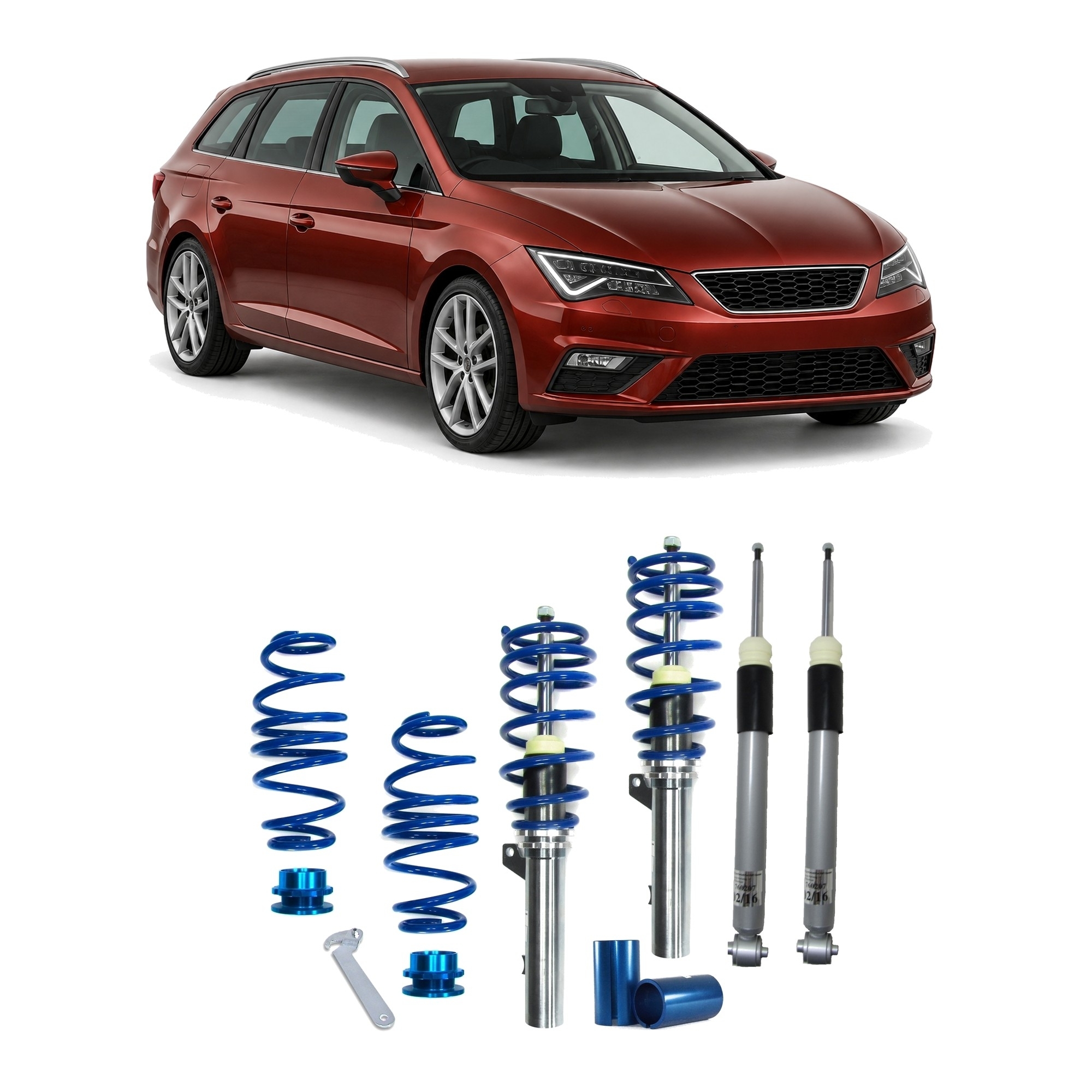

BlueLine Coilover Kit suitable for Seat Leon incl. ST-models (5F) 1.2 TSI, 1.4 TGI, 1.4 TSI, 1.6 TDI, 1.8 TFSI, 2.0 TDI year 2012-, only for vehicles with independent rear suspension
The BlueLine coilover kits are highgrade car-specific suspension components with a lowering on frontaxle between 30 - 65 mm and on the rearaxle between 40 - 65 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear spring.- adjustable range FA 30-65 mm / RA 40-65 mm
- max. axle load FA 1080 Kg / RA 1060 Kg
- §19.3 certificate
- EPC powder coated cold winded spring
- for vehicles with 50 and 55 mm strut diameter
EUR
289.96
new
https://www.jom.de/en/blueline-coilover-kit-suitable-seat-leon-incl-st-models-5f-1-2-tsi-1-4-tgi-1-4-tsi-1-6-tdi-1-8-tfsi-2-0-tdi-year-2012-only-vehicles-independent-rear-suspension
289,96 € RRP 399,95 €
🟢 Available, enough stock
Product.Nr.: 741169 741169
EAN: 4048961096485 4048961096485
Manufacturer: JOM Car Parts & Car Hifi GmbH JOM Car Parts & Car Hifi GmbH
weight: 23,62 kg 23.6200 kg
product description
The BlueLine coilover kits are highgrade car-specific suspension components with a lowering on frontaxle between 30 - 65 mm and on the rearaxle between 40 - 65 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear spring.
- adjustable range FA 30-65 mm / RA 40-65 mm
- max. axle load FA 1080 Kg / RA 1060 Kg
- §19.3 certificate
- EPC powder coated cold winded spring
- for vehicles with 50 and 55 mm strut diameter
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: JOM Car Parts & Car Hifi GmbHE-Mail adress: jom@jom.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: JOM Car Parts & Car Hifi GmbHE-Mail adress: jom@jom.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| Seat | Leon 1.2 TSi 1197 ccm, 81 KW, 110 PSHSN / TSN: 7593|AJZ Plattform : 5F1 |
04.2014 - 12.2019 | 7593|AJZ |
| Seat | Leon 1.4 TGi 1395 ccm, 81 KW, 110 PSHSN / TSN: 7593|AJV Plattform : 5F1 |
02.2013 - 12.2019 | 7593|AJV |
| Seat | Leon 1.4 TSi 1395 ccm, 103 KW, 140 PSHSN / TSN: 7593|AHI<>7593|AIM Plattform : 5F_ |
09.2012 - 12.2019 | 7593|AHI<>7593|AIM |
| Seat | Leon 1.4 TSi 1395 ccm, 110 KW, 150 PSHSN / TSN: 7593|AKB Plattform : 5F1 |
05.2014 - 12.2019 | 7593|AKB |
| Seat | Leon 1.4 TSi 1395 ccm, 90 KW, 122 PSHSN / TSN: 7593|AHH<>7593|AIL Plattform : 5F1 |
11.2012 - 12.2019 | 7593|AHH<>7593|AIL |
| Seat | Leon 1.4 TSi 1395 ccm, 92 KW, 125 PSHSN / TSN: 7593|AKA Plattform : 5F1 |
05.2014 - 12.2019 | 7593|AKA |
| Seat | Leon 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 7593|AHF<>7593|AIO Plattform : 5F_ |
11.2012 - 12.2019 | 7593|AHF<>7593|AIO |
| Seat | Leon 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|AHG<>7593|AIP Plattform : 5F_ |
11.2012 - 12.2019 | 7593|AHG<>7593|AIP |
| Seat | Leon 1.6 TDi 1598 ccm, 81 KW, 110 PSHSN / TSN: 7593|AIQ Plattform : 5F1 |
09.2013 - 12.2019 | 7593|AIQ |
| Seat | Leon 1.6 TDi 1598 ccm, 85 KW, 115 PSHSN / TSN: 7593|AMZ Plattform : 5F1 |
11.2016 - 12.2019 | 7593|AMZ |
| Seat | Leon 2.0 TDi 1968 ccm, 105 KW, 143 PSPlattform : 5F1 | 05.2013 - 12.2019 | |
| Seat | Leon 2.0 TDi 1968 ccm, 110 KW, 150 PSHSN / TSN: 7593|AHM<>7593|AIR Plattform : 5F1 |
10.2012 - 12.2019 | 7593|AHM<>7593|AIR |
| Seat | Leon 2.0 TDi 1968 ccm, 135 KW, 184 PSHSN / TSN: 7593|AHN<>7593|AIS Plattform : 5F1 |
09.2012 - 12.2019 | 7593|AHN<>7593|AIS |
| Seat | Leon 2.0 TDi 1968 ccm, 81 KW, 110 PSPlattform : 5F1 | 05.2013 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 1.2 TSi 1197 ccm, 63 KW, 86 PSPlattform : 5F1 | 01.2013 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 1.2 TSi 1197 ccm, 81 KW, 110 PSPlattform : 5F1 | 04.2014 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 1.4 TSi 1395 ccm, 103 KW, 140 PSPlattform : 5F1 | 09.2012 - 10.2016 | |
| Seat | Leon Kasten/Schrägheck 1.4 TSi 1395 ccm, 110 KW, 150 PSPlattform : 5F1 | 05.2014 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 1.4 TSi 1395 ccm, 90 KW, 122 PSPlattform : 5F1 | 09.2012 - 10.2016 | |
| Seat | Leon Kasten/Schrägheck 1.6 TDi 1598 ccm, 66 KW, 90 PSPlattform : 5F1 | 11.2012 - 10.2016 | |
| Seat | Leon Kasten/Schrägheck 1.6 TDi 1598 ccm, 77 KW, 105 PSPlattform : 5F1 | 09.2012 - 10.2016 | |
| Seat | Leon Kasten/Schrägheck 1.6 TDi 1598 ccm, 81 KW, 110 PSPlattform : 5F1 | 09.2013 - 10.2016 | |
| Seat | Leon Kasten/Schrägheck 1.6 TDi 1598 ccm, 85 KW, 115 PSPlattform : 5F1 | 11.2016 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 1.8 TFSi 1798 ccm, 132 KW, 180 PSPlattform : 5F1 | 02.2013 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 2.0 TDi 1968 ccm, 110 KW, 150 PSPlattform : 5F1 | 10.2012 - 12.2019 | |
| Seat | Leon Kasten/Schrägheck 2.0 TDi 1968 ccm, 135 KW, 184 PSPlattform : 5F1 | 02.2013 - 12.2019 | |
| Seat | Leon SC 1.2 TSi 1197 ccm, 63 KW, 86 PSHSN / TSN: 7593|AHJ<>7593|AIT Plattform : 5F5 |
01.2013 - 12.2019 | 7593|AHJ<>7593|AIT |
| Seat | Leon SC 1.2 TSi 1197 ccm, 77 KW, 105 PSHSN / TSN: 7593|AHK<>7593|AIU Plattform : 5F5 |
02.2013 - 12.2019 | 7593|AHK<>7593|AIU |
| Seat | Leon SC 1.2 TSi 1197 ccm, 81 KW, 110 PSHSN / TSN: 7593|AJU Plattform : 5F5 |
05.2014 - 12.2019 | 7593|AJU |
| Seat | Leon SC 1.4 TSi 1395 ccm, 103 KW, 140 PSHSN / TSN: 7593|AHI<>7593|AIW Plattform : 5F5 |
02.2013 - 12.2019 | 7593|AHI<>7593|AIW |
| Seat | Leon SC 1.4 TSi 1395 ccm, 110 KW, 150 PSHSN / TSN: 7593|AJY Plattform : 5F5 |
05.2014 - 12.2019 | 7593|AJY |
| Seat | Leon SC 1.4 TSi 1395 ccm, 90 KW, 122 PSHSN / TSN: 7593|AHH<>7593|AIV Plattform : 5F5 |
02.2013 - 12.2019 | 7593|AHH<>7593|AIV |
| Seat | Leon SC 1.4 TSi 1395 ccm, 92 KW, 125 PSHSN / TSN: 7593|AJP Plattform : 5F5 |
05.2014 - 12.2019 | 7593|AJP |
| Seat | Leon SC 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 7593|AHF<>7593|AIY Plattform : 5F5 |
02.2013 - 12.2019 | 7593|AHF<>7593|AIY |
| Seat | Leon SC 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|AHG<>7593|AIZ Plattform : 5F5 |
02.2013 - 12.2019 | 7593|AHG<>7593|AIZ |
| Seat | Leon SC 1.6 TDi 1598 ccm, 81 KW, 110 PSHSN / TSN: 7593|AJA Plattform : 5F5 |
09.2013 - 12.2019 | 7593|AJA |
| Seat | Leon SC 1.6 TDi 1598 ccm, 85 KW, 115 PSHSN / TSN: 7593|ANA Plattform : 5F5 |
11.2016 - 12.2019 | 7593|ANA |
| Seat | Leon SC 2.0 TDi 1968 ccm, 105 KW, 143 PSPlattform : 5F5 | 05.2013 - 12.2019 | |
| Seat | Leon SC 2.0 TDi 1968 ccm, 110 KW, 150 PSHSN / TSN: 7593|AHM<>7593|AJB Plattform : 5F5 |
02.2013 - 12.2019 | 7593|AHM<>7593|AJB |
| Seat | Leon SC 2.0 TDi 1968 ccm, 135 KW, 184 PSHSN / TSN: 7593|AHN<>7593|AJC Plattform : 5F5 |
03.2013 - 12.2019 | 7593|AHN<>7593|AJC |
| Seat | Leon SC 2.0 TDi 1968 ccm, 81 KW, 110 PSPlattform : 5F5 | 02.2013 - 12.2019 | |
| Seat | Leon ST 1.2 TSi 1197 ccm, 63 KW, 86 PSHSN / TSN: 7593|AJD Plattform : 5F8 |
11.2013 - 12.2019 | 7593|AJD |
| Seat | Leon ST 1.2 TSi 1197 ccm, 77 KW, 105 PSHSN / TSN: 7593|AJE Plattform : 5F8 |
08.2013 - 12.2019 | 7593|AJE |
| Seat | Leon ST 1.2 TSi 1197 ccm, 81 KW, 110 PSHSN / TSN: 7593|AKC Plattform : 5F8 |
05.2014 - 12.2019 | 7593|AKC |
| Seat | Leon ST 1.4 TGi 1395 ccm, 81 KW, 110 PSHSN / TSN: 7593|AJW Plattform : 5F8 |
10.2013 - 12.2019 | 7593|AJW |
| Seat | Leon ST 1.4 TSi 1395 ccm, 103 KW, 140 PSHSN / TSN: 7593|AJG Plattform : 5F8 |
10.2013 - 12.2019 | 7593|AJG |
| Seat | Leon ST 1.4 TSi 1395 ccm, 110 KW, 150 PSHSN / TSN: 7593|AKE Plattform : 5F8 |
05.2014 - 12.2019 | 7593|AKE |
| Seat | Leon ST 1.4 TSi 1395 ccm, 90 KW, 122 PSHSN / TSN: 7593|AJF Plattform : 5F8 |
10.2013 - 12.2019 | 7593|AJF |
| Seat | Leon ST 1.4 TSi 1395 ccm, 92 KW, 125 PSHSN / TSN: 7593|AKD<>7593|ALS Plattform : 5F8 |
05.2014 - 12.2019 | 7593|AKD<>7593|ALS |
| Seat | Leon ST 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 7593|AJI Plattform : 5F8 |
11.2013 - 12.2019 | 7593|AJI |
| Seat | Leon ST 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|AJJ Plattform : 5F8 |
10.2013 - 12.2019 | 7593|AJJ |
| Seat | Leon ST 1.6 TDi 1598 ccm, 81 KW, 110 PSHSN / TSN: 7593|AJK<>7593|ALT Plattform : 5F8 |
09.2013 - 12.2019 | 7593|AJK<>7593|ALT |
| Seat | Leon ST 1.6 TDi 1598 ccm, 85 KW, 115 PSHSN / TSN: 7593|ANB<>7593|ANC Plattform : 5F8 |
11.2016 - 12.2019 | 7593|ANB<>7593|ANC |
| Seat | Leon ST 2.0 TDi 1968 ccm, 105 KW, 143 PSPlattform : 5F8 | 10.2013 - 12.2019 | |
| Seat | Leon ST 2.0 TDi 1968 ccm, 110 KW, 150 PSHSN / TSN: 7593|AJL Plattform : 5F8 |
10.2013 - 12.2019 | 7593|AJL |
| Seat | Leon ST 2.0 TDi 1968 ccm, 135 KW, 184 PSHSN / TSN: 7593|AJM Plattform : 5F8 |
08.2013 - 12.2019 | 7593|AJM |
| Seat | Leon ST 2.0 TDi 1968 ccm, 81 KW, 110 PSHSN / TSN: 7593|ALO Plattform : 5F8 |
11.2013 - 12.2019 | 7593|ALO |
| Seat | Leon ST Kasten/Kombi 1.2 TSi 1197 ccm, 63 KW, 86 PSPlattform : 5F8 | 01.2013 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 1.2 TSi 1197 ccm, 81 KW, 110 PSPlattform : 5F8 | 05.2014 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 1.4 TSi 1395 ccm, 110 KW, 150 PSPlattform : 5F8 | 05.2014 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 1.6 TDi 1598 ccm, 81 KW, 110 PSPlattform : 5F8 | 09.2013 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 1.6 TDi 1598 ccm, 85 KW, 115 PSPlattform : 5F8 | 11.2016 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 1.8 TFSi 1798 ccm, 132 KW, 180 PSPlattform : 5F8 | 10.2013 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 2.0 TDi 1968 ccm, 110 KW, 150 PSPlattform : 5F8 | 04.2013 - 12.2019 | |
| Seat | Leon ST Kasten/Kombi 2.0 TDi 1968 ccm, 135 KW, 184 PSPlattform : 5F8 | 08.2013 - 12.2019 |
