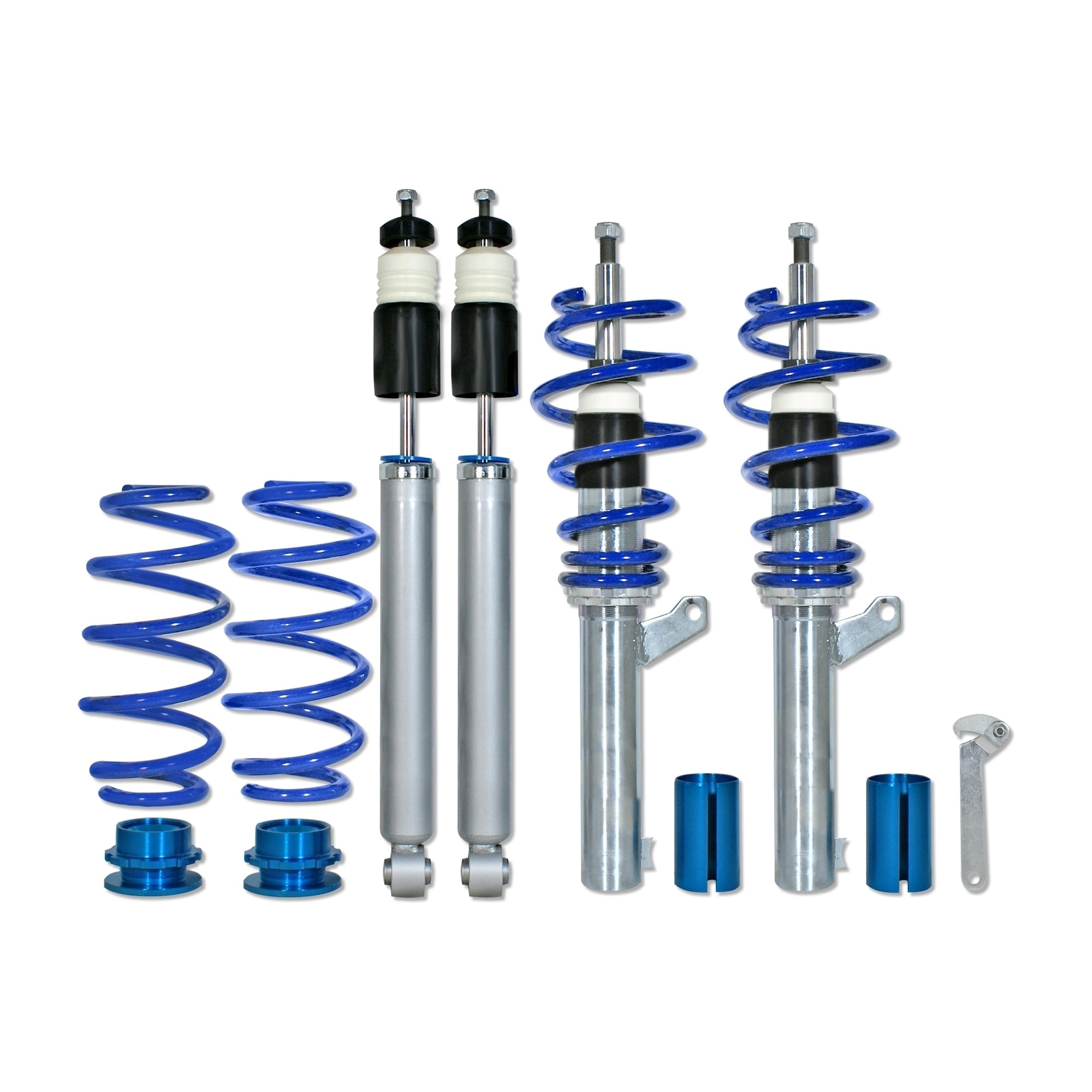

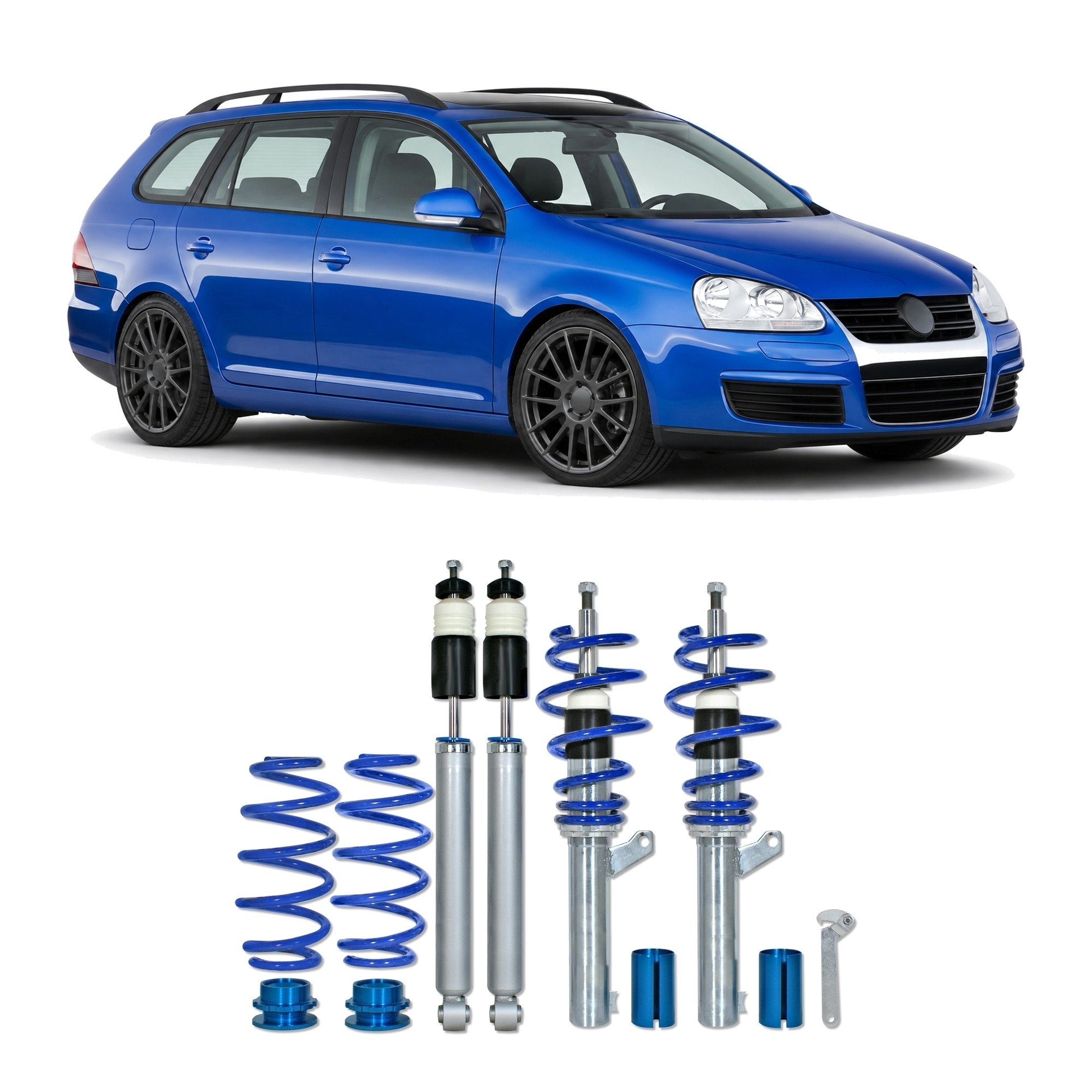

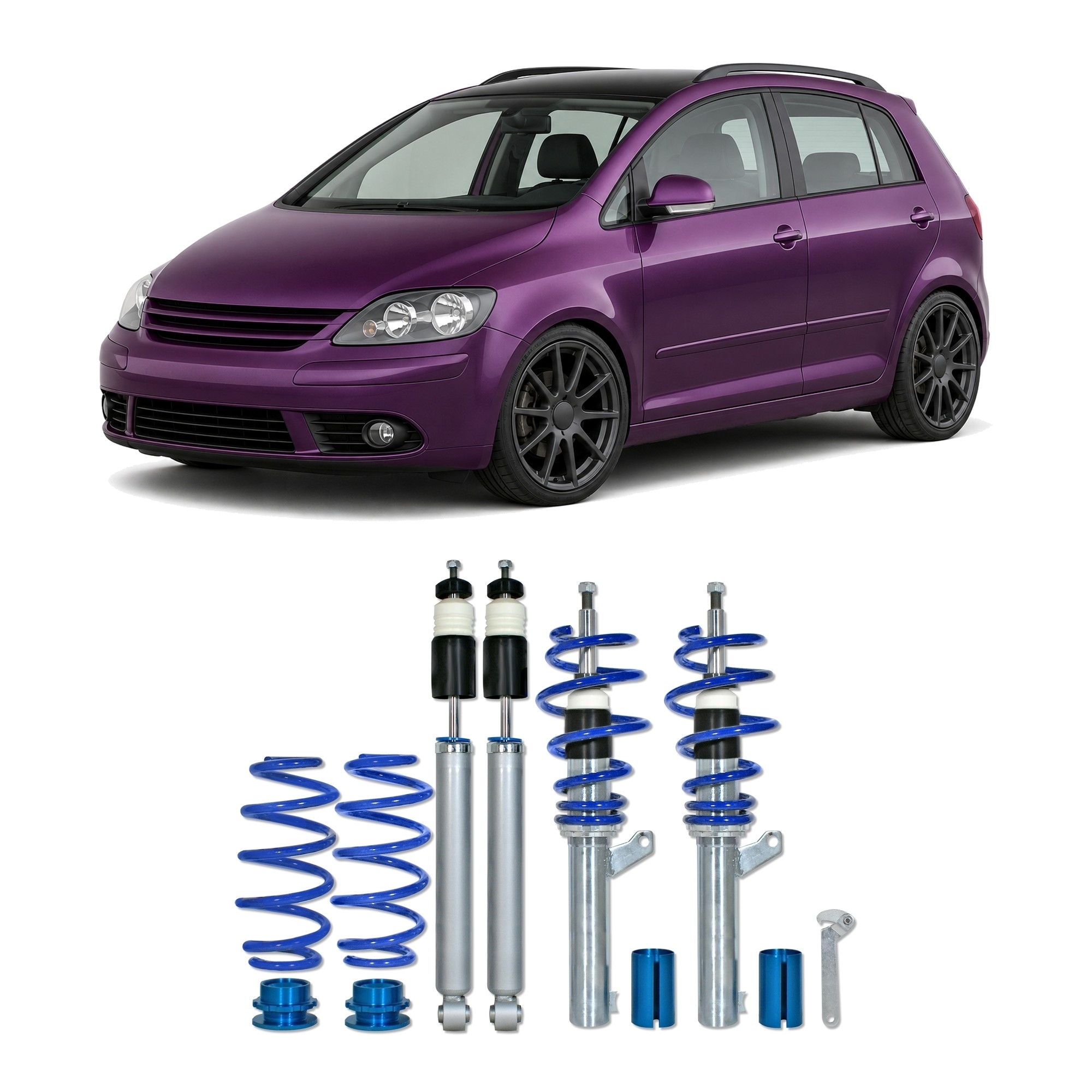

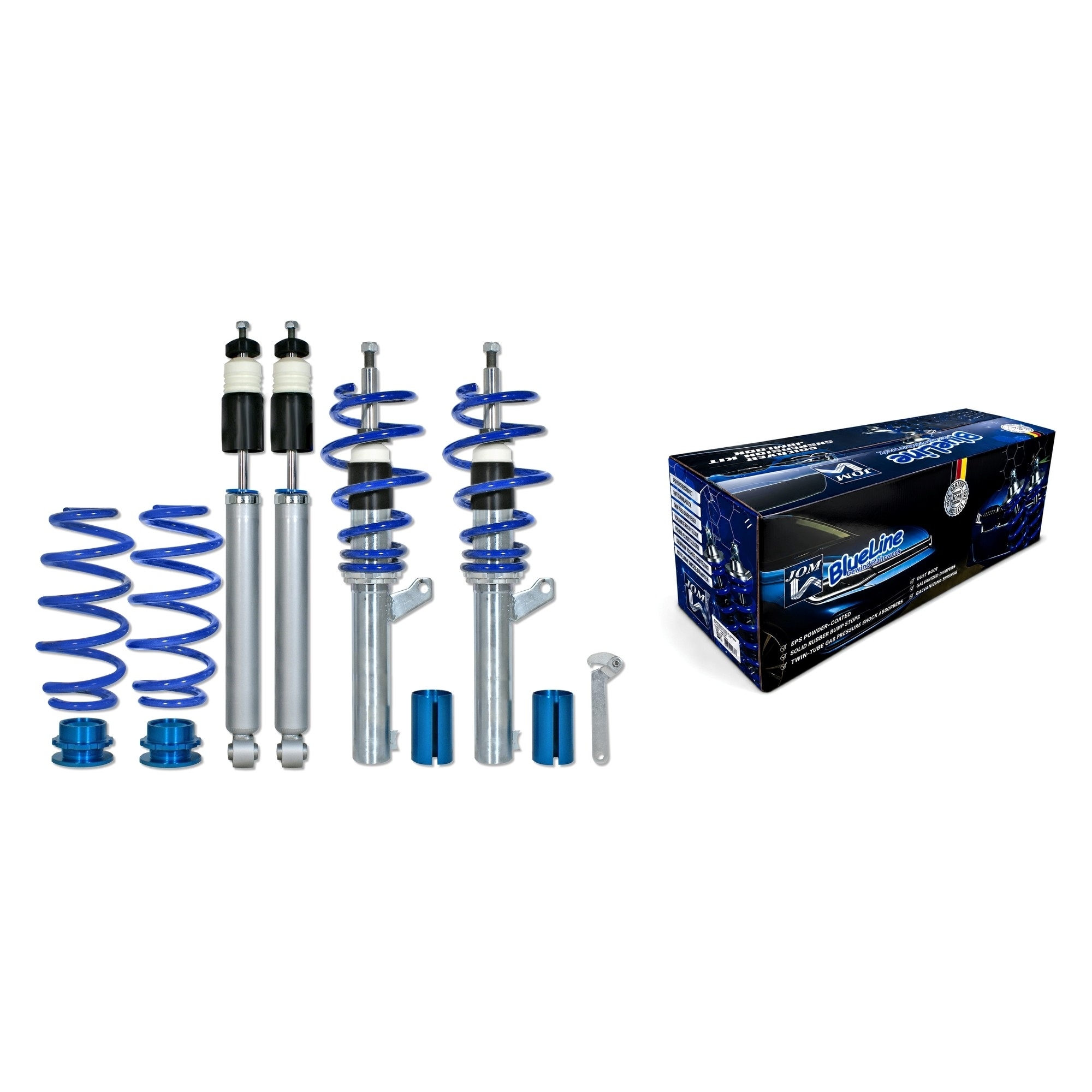

BlueLine Coilover Kit suitable for VW Golf 5 Plus and Variant 1.4, 1.4 TSi, 1.6, 2.0, 2.0T / DSG, 1.9TDi
The BlueLine coilover suspension kits are highgrade car-specific suspension components with a lowering on frontaxle between 20-60 mm and on the rearaxle between 30-60 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear spring.- adjustment range FA 20-60 / RA 30-60 mm
- max. axle load FA 1105 Kg / RA 1250 Kg
- §19.3 certificate
- EPC powder coated cold winded spring
- for vehicles with 50 and 55 mm strut diameter
EUR
209.96
new
https://www.jom.de/en/blueline-coilover-kit-suitable-vw-golf-5-plus-variant-1-4-1-4-tsi-1-6-2-0-2-0t-dsg-1-9tdi
209,96 € RRP 308,95 €
🟢 Sofort versandfähig, ausreichende Stückzahl
Product.Nr.: 741054 741054
EAN: 4048961075527 4048961075527
Manufacturer: JOM Car Parts & Car Hifi GmbH JOM Car Parts & Car Hifi GmbH
product description
The BlueLine coilover suspension kits are highgrade car-specific suspension components with a lowering on frontaxle between 20-60 mm and on the rearaxle between 30-60 mm. The range of adjustment gives an individual body lowering. The kits have a huge transverse force absorption. The initial spring tension survives in complete range of adjustment. Adjustment after installation. Car-specific versions: front thread / rear spring.
- adjustment range FA 20-60 / RA 30-60 mm
- max. axle load FA 1105 Kg / RA 1250 Kg
- §19.3 certificate
- EPC powder coated cold winded spring
- for vehicles with 50 and 55 mm strut diameter
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: JOM Car Parts & Car Hifi GmbHE-Mail adress: jom@jom.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: JOM Car Parts & Car Hifi GmbHE-Mail adress: jom@jom.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| VW | Golf V 1.4 16V 1390 ccm, 55 KW, 75 PSHSN / TSN: 0603|721<>0603|ADH Plattform : 1K1 |
10.2003 - 05.2006 | 0603|721<>0603|ADH |
| VW | Golf V 1.4 16V 1390 ccm, 59 KW, 80 PSHSN / TSN: 0603|AKF<>0603|AMD Plattform : 1K1 |
05.2006 - 11.2008 | 0603|AKF<>0603|AMD |
| VW | Golf V 1.4 FSI 1390 ccm, 66 KW, 90 PSHSN / TSN: 0603|736<>0603|ADO Plattform : 1K1 |
10.2003 - 07.2006 | 0603|736<>0603|ADO |
| VW | Golf V 1.4 TSI 1390 ccm, 103 KW, 140 PSHSN / TSN: 0603|AKE<>0603|AMA Plattform : 1K1 |
05.2006 - 11.2008 | 0603|AKE<>0603|AMA |
| VW | Golf V 1.4 TSI 1390 ccm, 125 KW, 170 PSHSN / TSN: 0603|ADQ<>0603|ALW Plattform : 1K1 |
11.2005 - 11.2008 | 0603|ADQ<>0603|ALW |
| VW | Golf V 1.4 TSI 1390 ccm, 90 KW, 122 PSHSN / TSN: 0603|AMK Plattform : 1K1 |
05.2007 - 11.2008 | 0603|AMK |
| VW | Golf V 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|743<>0603|ADJ<>0603|AMB Plattform : 1K1 |
01.2004 - 11.2008 | 0603|743<>0603|ADJ<>0603|AMB |
| VW | Golf V 1.6 FSI 1598 ccm, 85 KW, 115 PSHSN / TSN: 0603|722<>0603|ADP<>0603|ALV Plattform : 1K1 |
10.2003 - 07.2008 | 0603|722<>0603|ADP<>0603|ALV |
| VW | Golf V 1.6 MultiFuel 1595 ccm, 75 KW, 102 PSPlattform : 1K1 | 10.2007 - 11.2008 | |
| VW | Golf V 1.8 GTI 1781 ccm, 132 KW, 179 PSPlattform : 1K1 | 08.2006 - 11.2008 | |
| VW | Golf V 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0603|745<>0603|ADU<>0603|AMH Plattform : 1K1 |
05.2004 - 11.2008 | 0603|745<>0603|ADU<>0603|AMH |
| VW | Golf V 1.9 TDI 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|720<>0603|ADK<>0603|ALX Plattform : 1K1 |
10.2003 - 11.2008 | 0603|720<>0603|ADK<>0603|ALX |
| VW | Golf V 1.9 TDI 4motion 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|760<>0603|ADL<>0603|ALY Plattform : 1K1 |
08.2004 - 11.2008 | 0603|760<>0603|ADL<>0603|ALY |
| VW | Golf V 2.0 1984 ccm, 85 KW, 116 PSPlattform : 1K1 | 01.2005 - 11.2008 | |
| VW | Golf V 2.0 FSI 1984 ccm, 110 KW, 150 PSHSN / TSN: 0603|741<>0603|ADR<>0603|AMF Plattform : 1K1 |
01.2004 - 11.2008 | 0603|741<>0603|ADR<>0603|AMF |
| VW | Golf V 2.0 FSI 4motion 1984 ccm, 110 KW, 150 PSHSN / TSN: 0603|762<>0603|ADS<>0603|AME Plattform : 1K1 |
08.2004 - 11.2008 | 0603|762<>0603|ADS<>0603|AME |
| VW | Golf V 2.0 GTI 1984 ccm, 147 KW, 200 PSHSN / TSN: 0603|764<>0603|ADF<>0603|AMG Plattform : 1K1 |
10.2004 - 02.2009 | 0603|764<>0603|ADF<>0603|AMG |
| VW | Golf V 2.0 GTI 1984 ccm, 169 KW, 230 PSHSN / TSN: 0603|AKX<>0603|AMI Plattform : 1K1 |
09.2006 - 12.2008 | 0603|AKX<>0603|AMI |
| VW | Golf V 2.0 SDI 1968 ccm, 55 KW, 75 PSHSN / TSN: 0603|742<>0603|ADI<>0603|ALS Plattform : 1K1 |
01.2004 - 11.2008 | 0603|742<>0603|ADI<>0603|ALS |
| VW | Golf V 2.0 TDI 16V 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|724<>0603|ADM<>0603|ALT Plattform : 1K1 |
10.2003 - 11.2008 | 0603|724<>0603|ADM<>0603|ALT |
| VW | Golf V 2.0 TDI 16V 4motion 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|761<>0603|ADN<>0603|ALU Plattform : 1K1 |
08.2004 - 11.2008 | 0603|761<>0603|ADN<>0603|ALU |
| VW | Golf V 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|723<>0603|ADG<>0603|ALR Plattform : 1K1 |
10.2003 - 11.2008 | 0603|723<>0603|ADG<>0603|ALR |
| VW | Golf V 2.0 TDI 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|724<>0603|ADM<>0603|ALT Plattform : 1K1 |
12.2004 - 11.2008 | 0603|724<>0603|ADM<>0603|ALT |
| VW | Golf V 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0603|ADT<>0603|ALZ Plattform : 1K1 |
11.2005 - 11.2008 | 0603|ADT<>0603|ALZ |
| VW | Golf V 2.0 TDI 4motion 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ADN<>0603|ALU Plattform : 1K1 |
08.2004 - 11.2008 | 0603|ADN<>0603|ALU |
| VW | Golf V 2.5 2480 ccm, 110 KW, 150 PSPlattform : 1K1 | 06.2005 - 11.2008 | |
| VW | Golf V 3.2 3189 ccm, 184 KW, 250 PSPlattform : 1K1 | 09.2005 - 11.2008 | |
| VW | Golf V 3.2 R32 4motion 3189 ccm, 177 KW, 241 PSPlattform : 1K1 | 01.2004 - 11.2008 | |
| VW | Golf V 3.2 R32 4motion 3189 ccm, 184 KW, 250 PSHSN / TSN: 0603|820<>0603|ADV<>0603|AMC Plattform : 1K1 |
11.2005 - 11.2008 | 0603|820<>0603|ADV<>0603|AMC |
| VW | Golf V Variant 1.4 1390 ccm, 59 KW, 80 PSHSN / TSN: 0603|AMM Plattform : 1K5 |
06.2007 - 07.2009 | 0603|AMM |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 103 KW, 140 PSHSN / TSN: 0603|ALF Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALF |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 118 KW, 160 PSHSN / TSN: 0603|ANX Plattform : 1K5 |
07.2008 - 07.2009 | 0603|ANX |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 125 KW, 170 PSHSN / TSN: 0603|ALJ Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALJ |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 90 KW, 122 PSHSN / TSN: 0603|AMN Plattform : 1K5 |
06.2007 - 07.2009 | 0603|AMN |
| VW | Golf V Variant 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|ALG Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALG |
| VW | Golf V Variant 1.6 MultiFuel 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|AOW Plattform : 1K5 |
11.2007 - 07.2009 | 0603|AOW |
| VW | Golf V Variant 1.9 TDI 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|ALD Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALD |
| VW | Golf V Variant 1.9 TDI 4motion 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|ANH Plattform : 1K5 |
01.2008 - 07.2009 | 0603|ANH |
| VW | Golf V Variant 2.0 1984 ccm, 147 KW, 200 PSHSN / TSN: 0603|ALK Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALK |
| VW | Golf V Variant 2.0 TDI 16V 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ALE Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALE |
| VW | Golf V Variant 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|ALI Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALI |
| VW | Golf V Variant 2.0 TDI 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ALE Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALE |
| VW | Golf V Variant 2.0 TDI 4motion 1968 ccm, 100 KW, 136 PSPlattform : 1K5 | 06.2007 - 07.2009 |
