Wheel spacer kit 10mm incl. wheel bolts
NJT alum. wheel spacers 10mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 10mm per axle (5mm each side) - without centering element - hole circle 5x100 / 5x112 - hub hole bore 57,1mm - 10x spherical wheel bolts M14x1,5 33mm Suitable for Audi A4 (QB6) - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
EUR
51.96
new
https://www.jom.de/en/wheel-spacer-kit-10mm-incl-wheel-bolts-audi-a4-quattro-qb6
51,96 € RRP 54,95 €
🔴 Derzeit nicht lieferbar
Product.Nr.: 790035 790035
EAN: 4048961099844 4048961099844
Manufacturer: NJT GbR NJT GbR
weight: 1,18 kg 1.1760 kg
product description

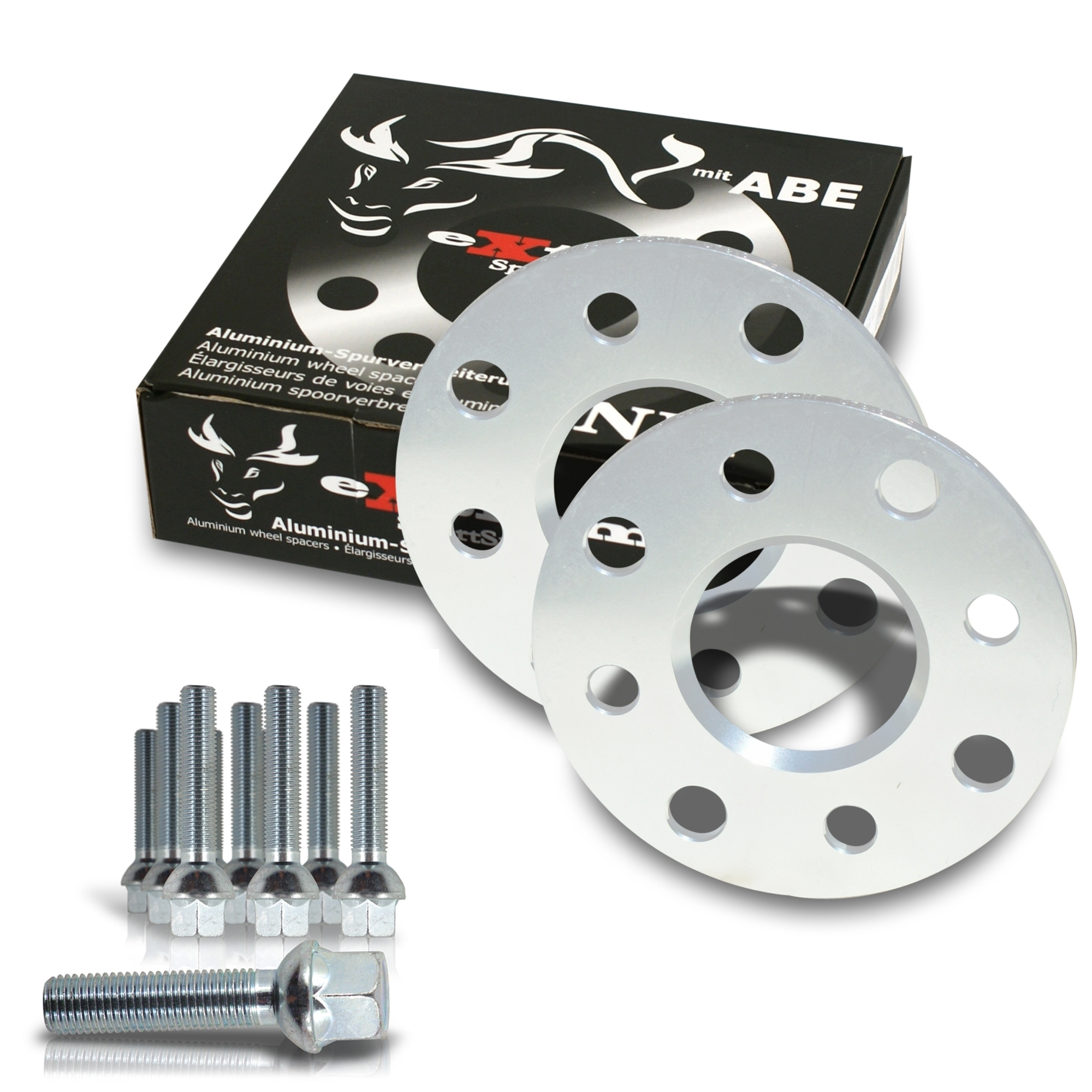

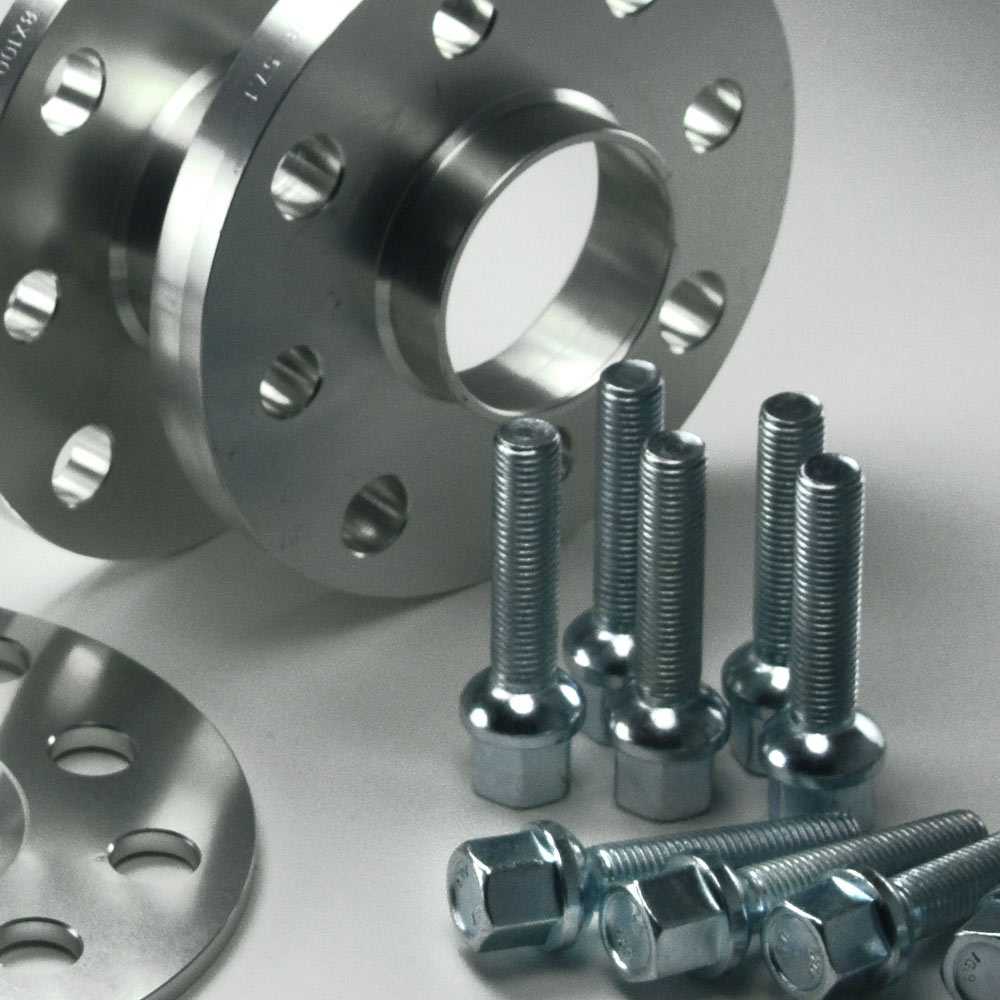

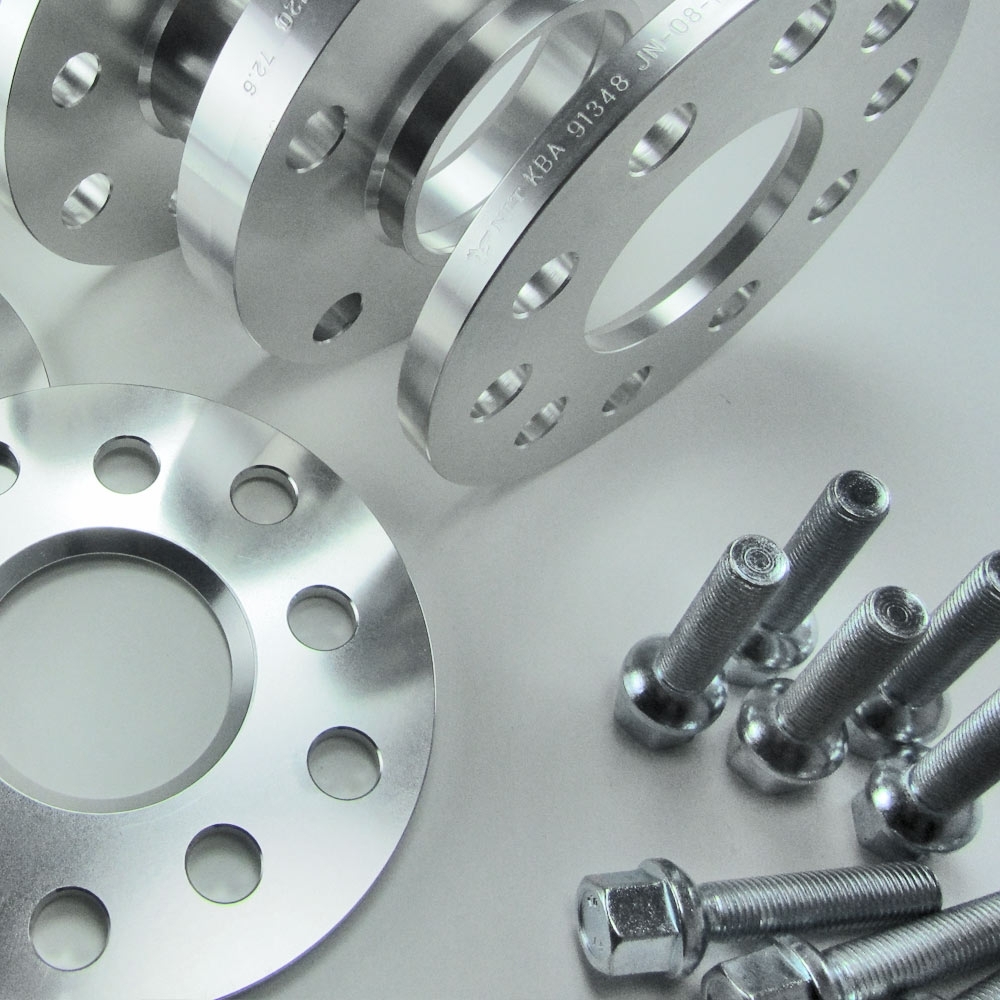

NJT alum. wheel spacers 10mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 10mm per axle (5mm each side)
- without centering element
- hole circle 5x100 / 5x112
- hub hole bore 57,1mm
- 10x spherical wheel bolts M14x1,5 33mm
Suitable for Audi A4 (QB6)

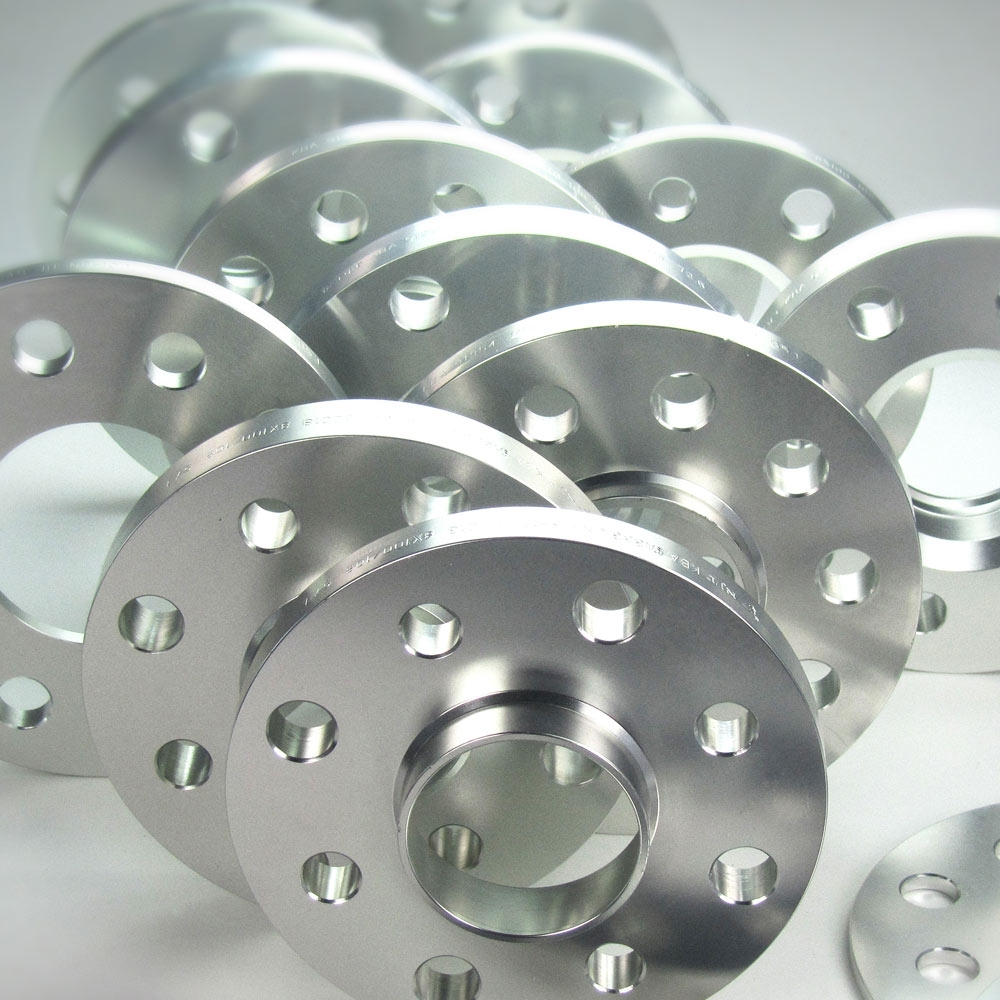

- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)

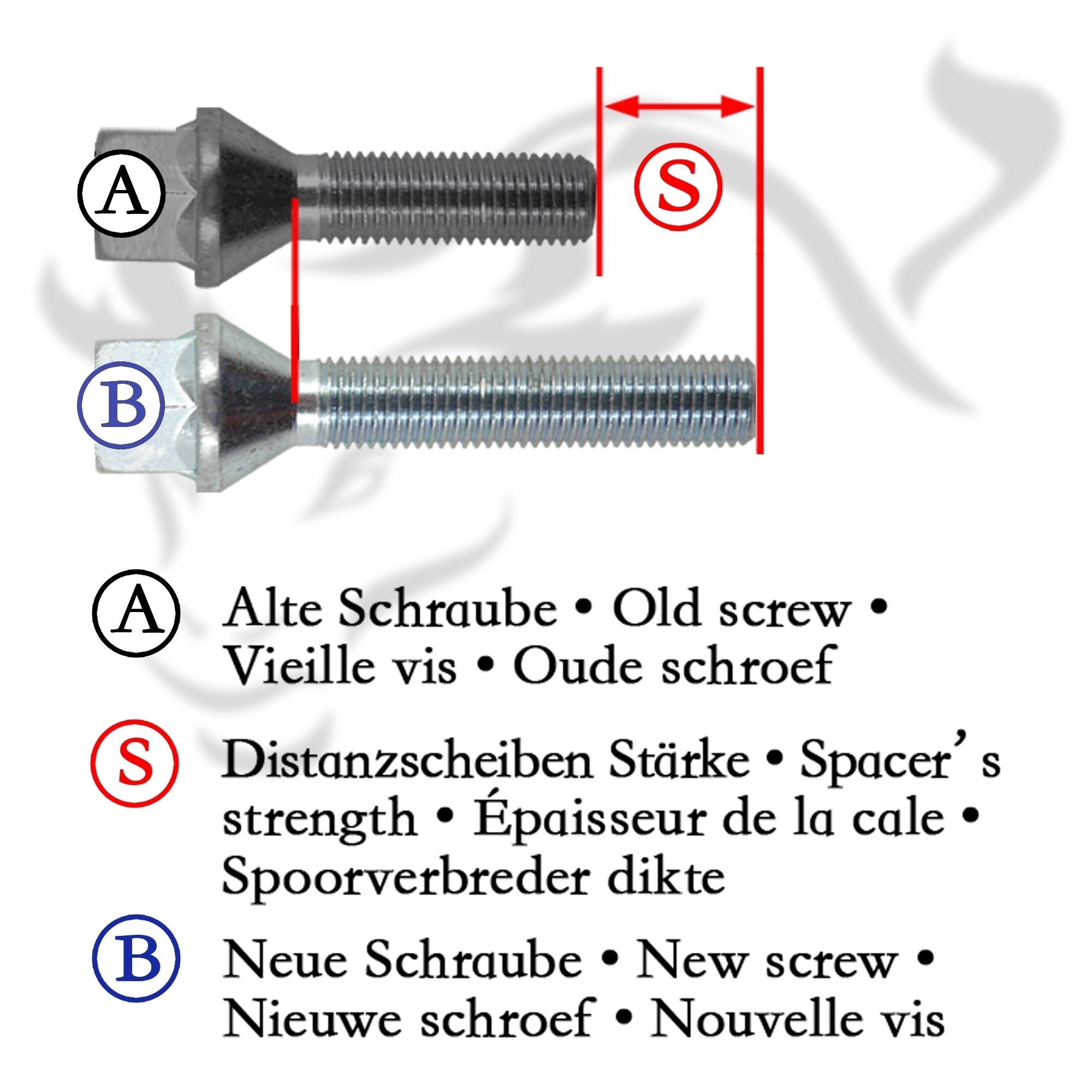

Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length

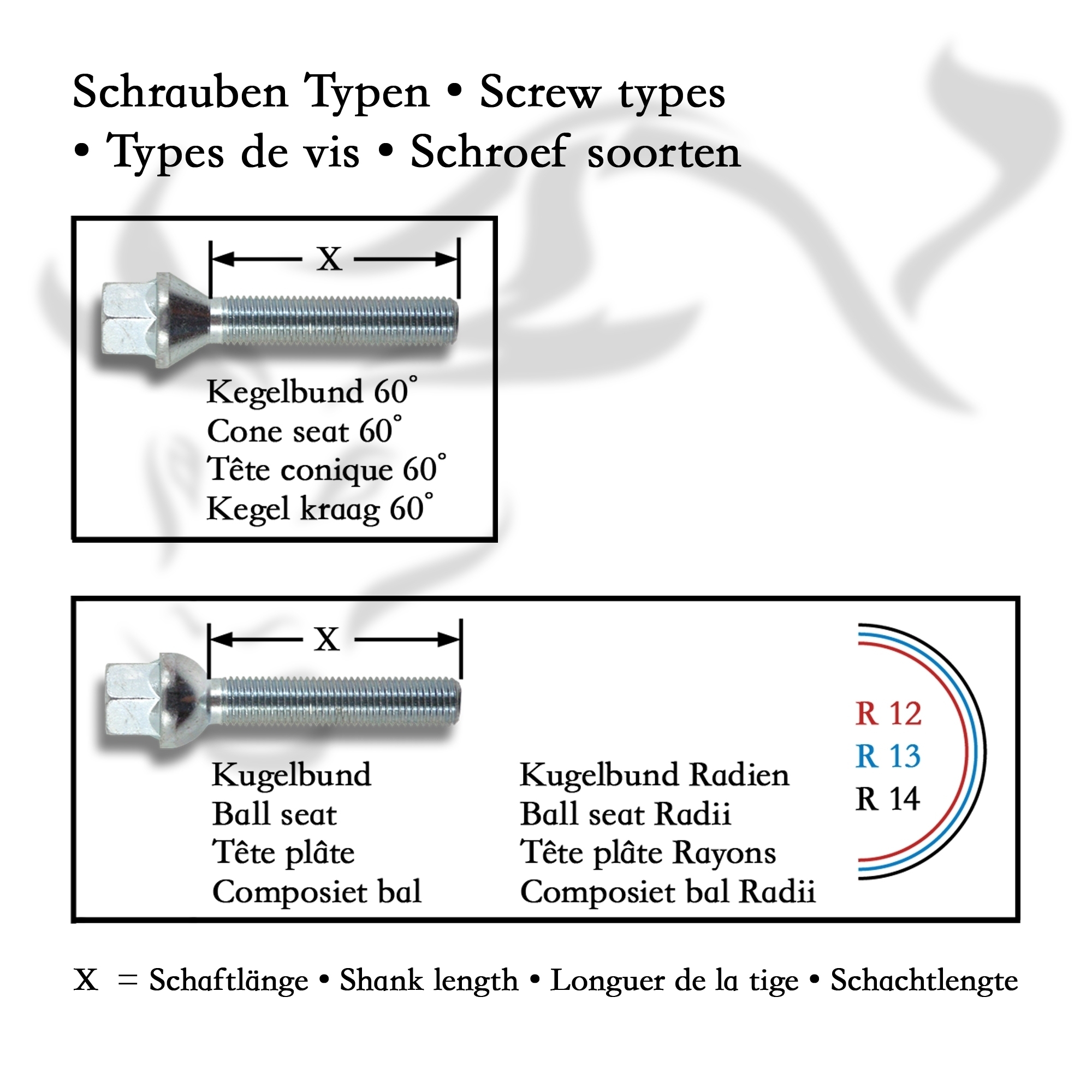

- check whether conical or spherical collar bolts are required
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
Product variations
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| Audi | A4 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0588|745 Plattform : 8E2, B6 |
11.2000 - 12.2004 | 0588|745 |
| Audi | A4 1.8 T 1781 ccm, 110 KW, 150 PSHSN / TSN: 0588|746 Plattform : 8E2, B6 |
11.2000 - 07.2002 | 0588|746 |
| Audi | A4 1.8 T 1781 ccm, 120 KW, 163 PSHSN / TSN: 0588|808 Plattform : 8E2, B6 |
07.2002 - 12.2004 | 0588|808 |
| Audi | A4 1.8 T 1781 ccm, 125 KW, 170 PSPlattform : 8E2, B6 | 07.2001 - 12.2004 | |
| Audi | A4 1.8 T 1781 ccm, 140 KW, 190 PSHSN / TSN: 0588|822 Plattform : 8E2, B6 |
11.2002 - 12.2004 | 0588|822 |
| Audi | A4 1.8 T quattro 1781 ccm, 110 KW, 150 PSHSN / TSN: 0588|747 Plattform : 8E2, B6 |
11.2000 - 07.2002 | 0588|747 |
| Audi | A4 1.8 T quattro 1781 ccm, 120 KW, 163 PSHSN / TSN: 0588|810 Plattform : 8E2, B6 |
07.2002 - 12.2004 | 0588|810 |
| Audi | A4 1.8 T quattro 1781 ccm, 125 KW, 170 PSPlattform : 8E2, B6 | 07.2001 - 12.2004 | |
| Audi | A4 1.8 T quattro 1781 ccm, 140 KW, 190 PSHSN / TSN: 0588|823 Plattform : 8E2, B6 |
11.2002 - 12.2004 | 0588|823 |
| Audi | A4 1.9 TDI 1896 ccm, 74 KW, 101 PSHSN / TSN: 0588|754 Plattform : 8E2, B6 |
05.2001 - 12.2004 | 0588|754 |
| Audi | A4 1.9 TDI 1896 ccm, 85 KW, 116 PSHSN / TSN: 0588|846 Plattform : 8E2, B6 |
06.2004 - 12.2004 | 0588|846 |
| Audi | A4 1.9 TDI 1896 ccm, 96 KW, 130 PSHSN / TSN: 0588|751 Plattform : 8E2, B6 |
11.2000 - 12.2004 | 0588|751 |
| Audi | A4 1.9 TDI quattro 1896 ccm, 96 KW, 130 PSHSN / TSN: 0588|782 Plattform : 8E2, B6 |
11.2001 - 12.2004 | 0588|782 |
| Audi | A4 2.0 1984 ccm, 96 KW, 130 PSHSN / TSN: 0588|748 Plattform : 8E2, B6 |
11.2000 - 12.2004 | 0588|748 |
| Audi | A4 2.0 FSI 1984 ccm, 110 KW, 150 PSHSN / TSN: 0588|796 Plattform : 8E2, B6 |
07.2002 - 12.2004 | 0588|796 |
| Audi | A4 2.4 2393 ccm, 120 KW, 163 PSHSN / TSN: 0588|786 Plattform : 8E2, B6 |
09.2001 - 12.2004 | 0588|786 |
| Audi | A4 2.4 2393 ccm, 125 KW, 170 PSHSN / TSN: 0588|784 Plattform : 8E2, B6 |
09.2001 - 12.2004 | 0588|784 |
| Audi | A4 2.5 TDI 2496 ccm, 114 KW, 155 PSHSN / TSN: 0588|753 Plattform : 8E2, B6 |
08.2001 - 07.2002 | 0588|753 |
| Audi | A4 2.5 TDI 2496 ccm, 120 KW, 163 PSHSN / TSN: 0588|804 Plattform : 8E2, B6 |
07.2002 - 12.2004 | 0588|804 |
| Audi | A4 2.5 TDI quattro 2496 ccm, 132 KW, 180 PSHSN / TSN: 0588|752 Plattform : 8E2, B6 |
11.2000 - 12.2004 | 0588|752 |
| Audi | A4 3.0 2976 ccm, 160 KW, 218 PSPlattform : 8E2, B6 | 04.2001 - 12.2004 | |
| Audi | A4 3.0 2976 ccm, 162 KW, 220 PSHSN / TSN: 0588|749 Plattform : 8E2, B6 |
11.2000 - 12.2004 | 0588|749 |
| Audi | A4 3.0 quattro 2976 ccm, 160 KW, 218 PSPlattform : 8E2, B6 | 04.2001 - 12.2004 | |
| Audi | A4 3.0 quattro 2976 ccm, 162 KW, 220 PSHSN / TSN: 0588|750 Plattform : 8E2, B6 |
11.2000 - 12.2004 | 0588|750 |
| Audi | A4 Avant 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0588|772 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|772 |
| Audi | A4 Avant 1.8 T 1781 ccm, 110 KW, 150 PSHSN / TSN: 0588|773 Plattform : 8E5, B6 |
09.2001 - 07.2002 | 0588|773 |
| Audi | A4 Avant 1.8 T 1781 ccm, 120 KW, 163 PSHSN / TSN: 0588|809 Plattform : 8E5, B6 |
07.2002 - 12.2004 | 0588|809 |
| Audi | A4 Avant 1.8 T 1781 ccm, 140 KW, 190 PSHSN / TSN: 0588|820 Plattform : 8E5, B6 |
11.2002 - 12.2004 | 0588|820 |
| Audi | A4 Avant 1.8 T quattro 1781 ccm, 110 KW, 150 PSHSN / TSN: 0588|774 Plattform : 8E5, B6 |
09.2001 - 07.2002 | 0588|774 |
| Audi | A4 Avant 1.8 T quattro 1781 ccm, 120 KW, 163 PSHSN / TSN: 0588|811 Plattform : 8E5, B6 |
07.2002 - 12.2004 | 0588|811 |
| Audi | A4 Avant 1.8 T quattro 1781 ccm, 125 KW, 170 PSPlattform : 8E5, B6 | 09.2001 - 12.2004 | |
| Audi | A4 Avant 1.8 T quattro 1781 ccm, 140 KW, 190 PSHSN / TSN: 0588|821 Plattform : 8E5, B6 |
11.2002 - 12.2004 | 0588|821 |
| Audi | A4 Avant 1.9 TDI 1896 ccm, 74 KW, 101 PSHSN / TSN: 0588|781 Plattform : 8E5, B6 |
11.2001 - 12.2004 | 0588|781 |
| Audi | A4 Avant 1.9 TDI 1896 ccm, 85 KW, 116 PSHSN / TSN: 0588|845 Plattform : 8E5, B6 |
06.2004 - 12.2004 | 0588|845 |
| Audi | A4 Avant 1.9 TDI 1896 ccm, 96 KW, 130 PSHSN / TSN: 0588|778 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|778 |
| Audi | A4 Avant 1.9 TDI quattro 1896 ccm, 96 KW, 130 PSHSN / TSN: 0588|783 Plattform : 8E5, B6 |
11.2001 - 12.2004 | 0588|783 |
| Audi | A4 Avant 2.0 1984 ccm, 96 KW, 130 PSHSN / TSN: 0588|775 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|775 |
| Audi | A4 Avant 2.0 FSI 1984 ccm, 110 KW, 150 PSHSN / TSN: 0588|797 Plattform : 8E5, B6 |
07.2002 - 12.2004 | 0588|797 |
| Audi | A4 Avant 2.4 2393 ccm, 120 KW, 163 PSHSN / TSN: 0588|787 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|787 |
| Audi | A4 Avant 2.4 2393 ccm, 125 KW, 170 PSHSN / TSN: 0588|785 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|785 |
| Audi | A4 Avant 2.5 TDI 2496 ccm, 114 KW, 155 PSHSN / TSN: 0588|780 Plattform : 8E5, B6 |
09.2001 - 07.2002 | 0588|780 |
| Audi | A4 Avant 2.5 TDI 2496 ccm, 120 KW, 163 PSHSN / TSN: 0588|805 Plattform : 8E5, B6 |
07.2002 - 12.2004 | 0588|805 |
| Audi | A4 Avant 2.5 TDI quattro 2496 ccm, 132 KW, 180 PSHSN / TSN: 0588|779 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|779 |
| Audi | A4 Avant 3.0 2976 ccm, 160 KW, 218 PSPlattform : 8E5, B6 | 04.2001 - 12.2004 | |
| Audi | A4 Avant 3.0 2976 ccm, 162 KW, 220 PSHSN / TSN: 0588|776 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|776 |
| Audi | A4 Avant 3.0 quattro 2976 ccm, 160 KW, 218 PSPlattform : 8E5, B6 | 04.2001 - 12.2004 | |
| Audi | A4 Avant 3.0 quattro 2976 ccm, 162 KW, 220 PSHSN / TSN: 0588|777 Plattform : 8E5, B6 |
09.2001 - 12.2004 | 0588|777 |
| Audi | A4 Avant S4 quattro 4163 ccm, 253 KW, 344 PSHSN / TSN: 0588|824 Plattform : 8E5, B6 |
03.2003 - 12.2004 | 0588|824 |
| Audi | A4 S4 quattro 4163 ccm, 253 KW, 344 PSHSN / TSN: 0588|825 Plattform : 8E2 |
03.2003 - 12.2004 | 0588|825 |
