Wheel spacer kit 10mm incl. wheel bolts, for Seat Ibiza / Ibiza Cupra / Ibiza ST / 6J
NJT alum. wheel spacers 10mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 10mm per axle (5mm each side) - without centering element - hole circle 5x100 / 5x112 - hub hole bore 57,1mm -10x spherical wheel bolts M14x1,5 33mm Suitable for: Seat: Ibiza (6J) Ibiza Cupra, 132kw (6J) Ibiza ST (6J - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
EUR
51.96
new
https://www.jom.de/en/wheel-spacer-kit-10mm-incl-wheel-bolts-seat-ibiza-ibiza-cupra-ibiza-st-6j
51,96 € RRP 54,95 €
🟢 Sofort versandfähig, ausreichende Stückzahl
Product.Nr.: 790382 790382
EAN: 4048961100137 4048961100137
Manufacturer: NJT GbR NJT GbR
weight: 1,18 kg 1.1760 kg
product description

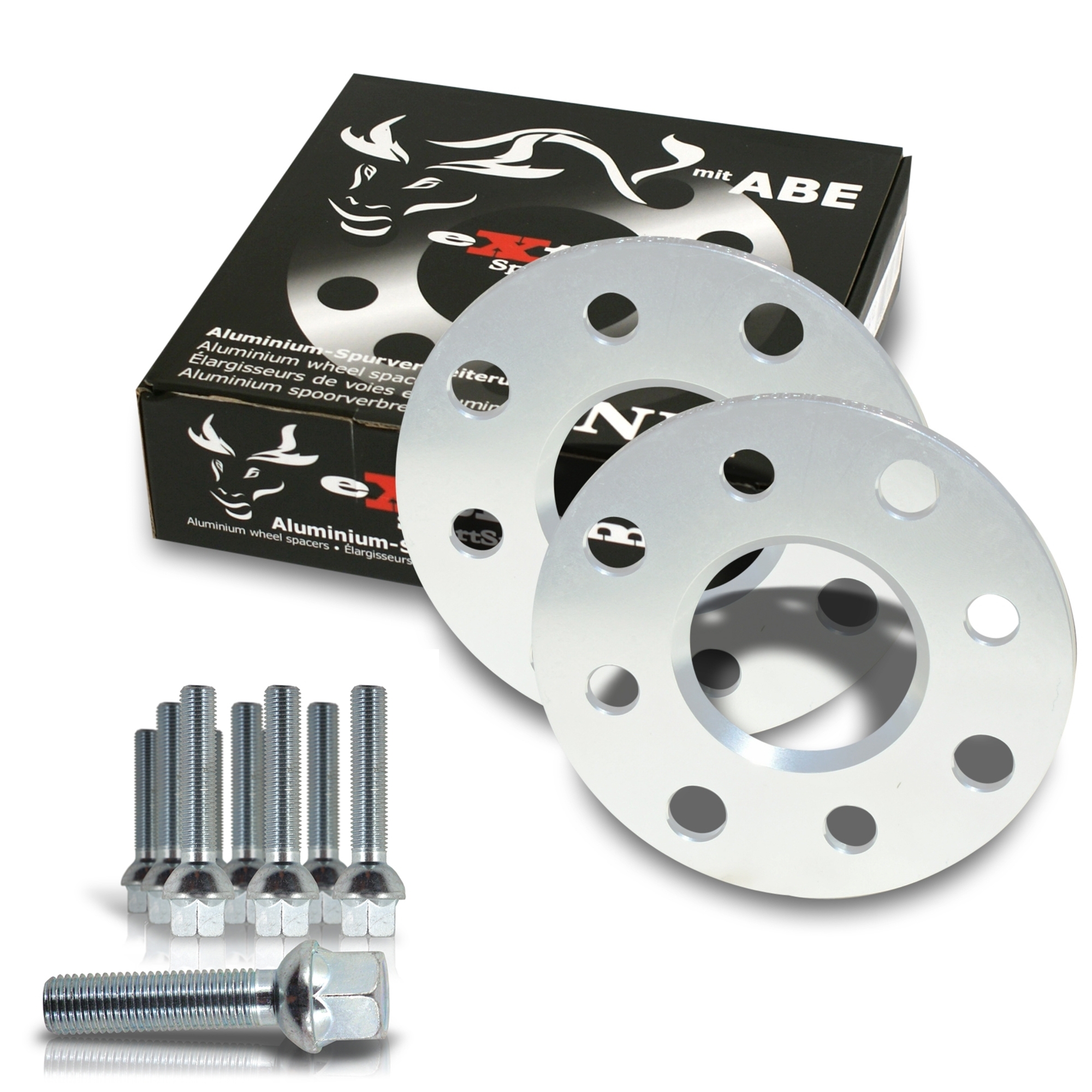

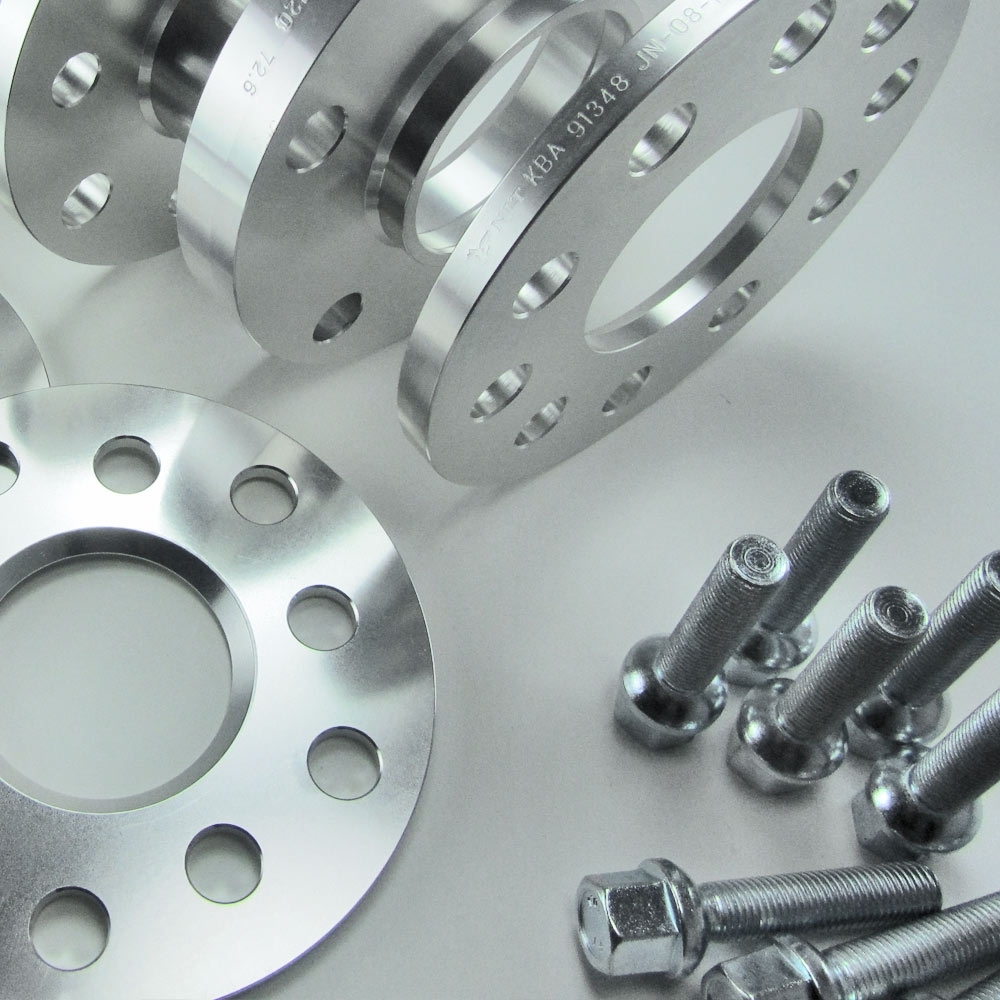

NJT alum. wheel spacers 10mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 10mm per axle (5mm each side)
- without centering element
- hole circle 5x100 / 5x112
- hub hole bore 57,1mm
-10x spherical wheel bolts M14x1,5 33mm
Suitable for:
Seat:
Ibiza (6J)
Ibiza Cupra, 132kw (6J)
Ibiza ST (6J
- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)

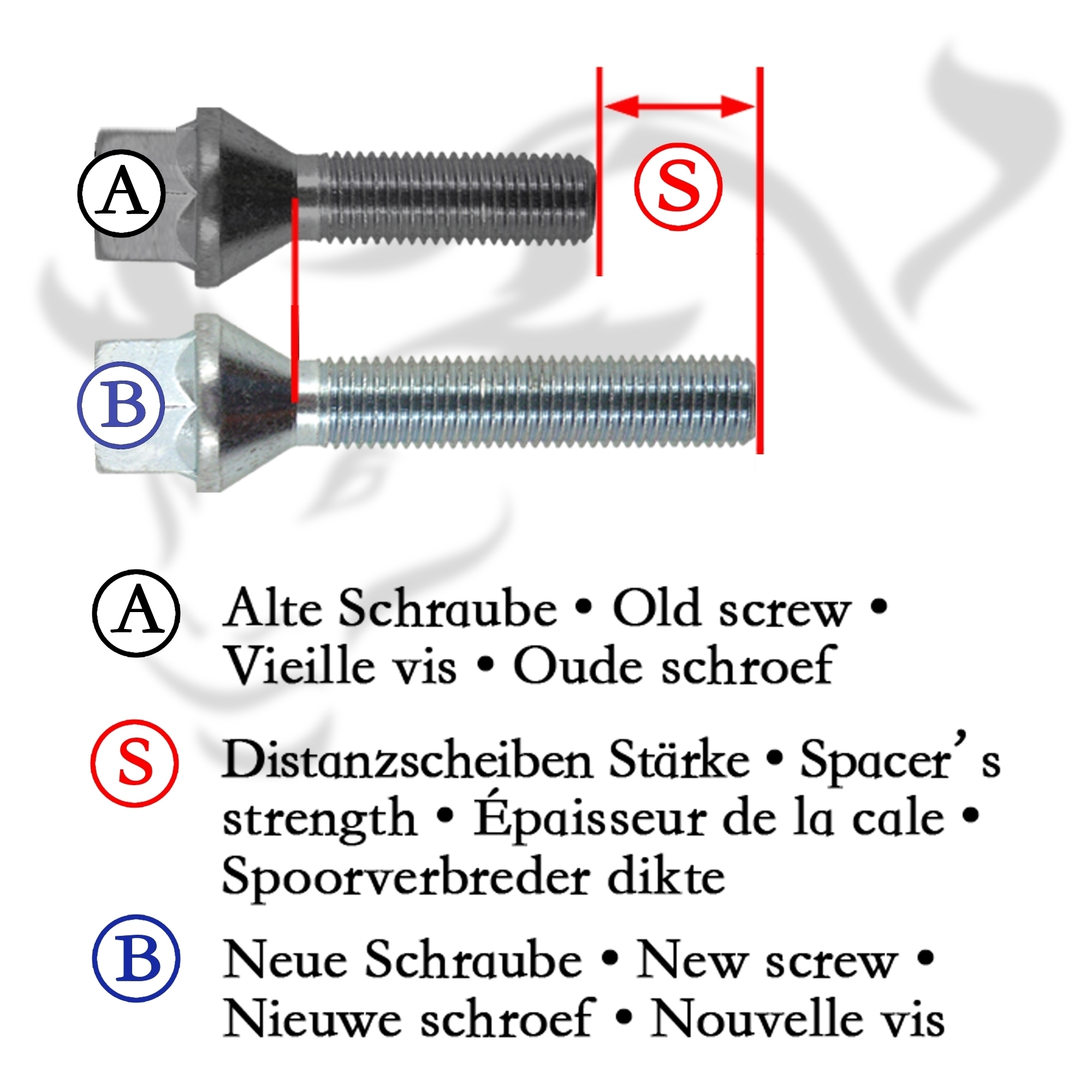

Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length

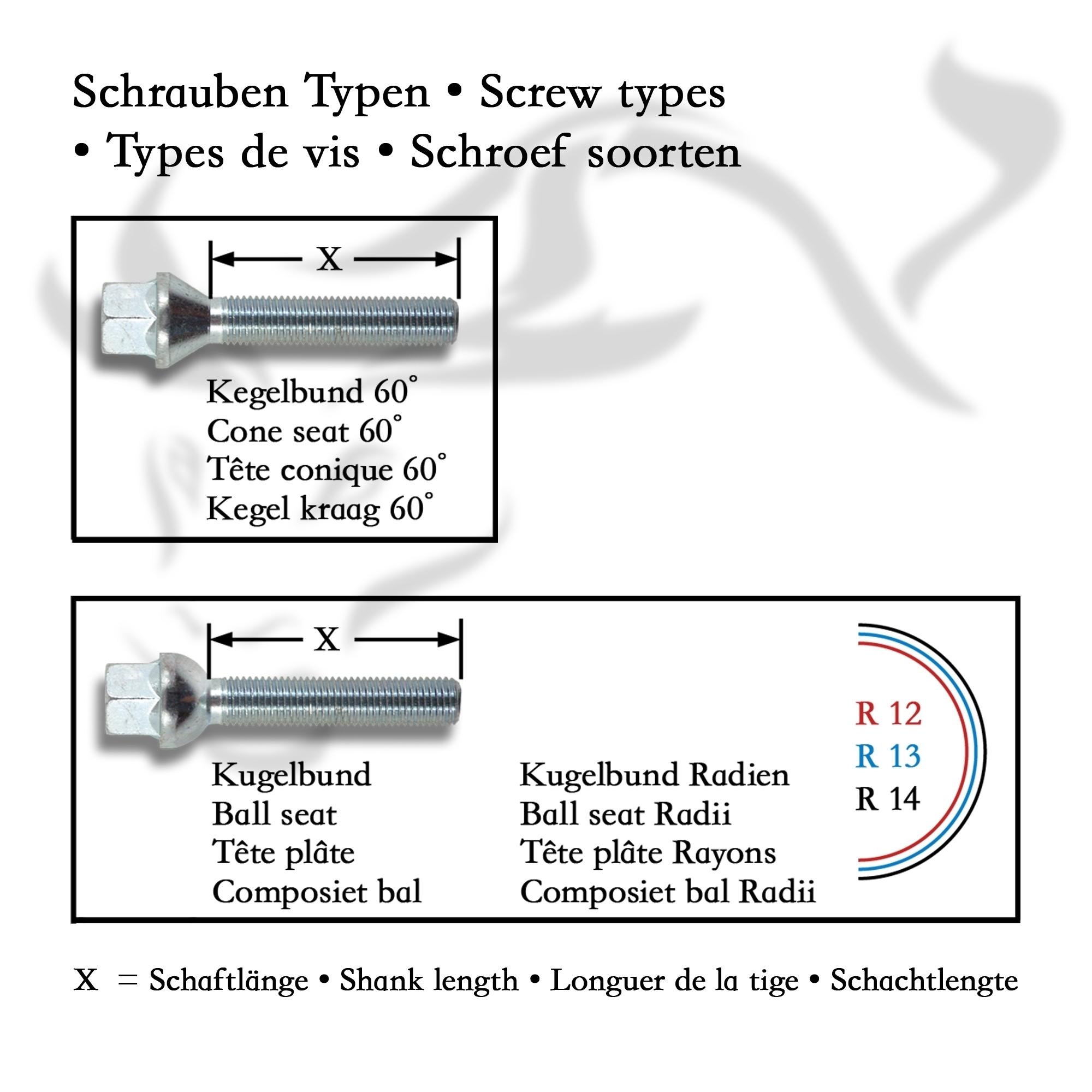

- check whether conical or spherical collar bolts are required
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
Product variations
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| Seat | Ibiza IV 1.2 1198 ccm, 44 KW, 60 PSHSN / TSN: 7593|AEF Plattform : 6J5 |
07.2009 - 12.2015 | 7593|AEF |
| Seat | Ibiza IV 1.2 1198 ccm, 51 KW, 70 PSHSN / TSN: 7593|ADN Plattform : 6J5, 6P1 |
03.2008 - 05.2015 | 7593|ADN |
| Seat | Ibiza IV 1.2 TSi 1197 ccm, 77 KW, 105 PSHSN / TSN: 7593|AFQ Plattform : 6J5, 6P1 |
09.2010 - 03.2012 | 7593|AFQ |
| Seat | Ibiza IV 1.4 1390 ccm, 63 KW, 85 PSHSN / TSN: 7593|ADM Plattform : 6J5, 6P1 |
03.2008 - 12.2010 | 7593|ADM |
| Seat | Ibiza IV 1.4 TDi 1422 ccm, 59 KW, 80 PSHSN / TSN: 7593|ADP Plattform : 6J5, 6P1 |
07.2008 - 06.2010 | 7593|ADP |
| Seat | Ibiza IV 1.4 TSi 1390 ccm, 110 KW, 150 PSHSN / TSN: 7593|ADX Plattform : 6J5, 6P1 |
06.2009 - 05.2015 | 7593|ADX |
| Seat | Ibiza IV 1.6 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|ADO Plattform : 6J5, 6P1 |
05.2008 - 03.2012 | 7593|ADO |
| Seat | Ibiza IV 1.6 LPG 1598 ccm, 60 KW, 81 PSHSN / TSN: 7593|AGM Plattform : 6J5 |
05.2011 - 12.2019 | 7593|AGM |
| Seat | Ibiza IV 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 7593|AEG Plattform : 6J5, 6P1 |
05.2009 - 05.2015 | 7593|AEG |
| Seat | Ibiza IV 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|AEH Plattform : 6J5 |
05.2009 - 12.2019 | 7593|AEH |
| Seat | Ibiza IV 1.9 TDi 1896 ccm, 66 KW, 90 PSHSN / TSN: 7593|ADQ Plattform : 6J5, 6P1 |
07.2008 - 06.2010 | 7593|ADQ |
| Seat | Ibiza IV 1.9 TDi 1896 ccm, 77 KW, 105 PSHSN / TSN: 7593|ADL Plattform : 6J5, 6P1 |
03.2008 - 06.2010 | 7593|ADL |
| Seat | Ibiza IV 2.0 1984 ccm, 85 KW, 115 PSPlattform : 6J5 | 10.2008 - 12.2019 | |
| Seat | Ibiza IV 2.0 TDi 1968 ccm, 105 KW, 143 PSHSN / TSN: 7593|AER Plattform : 6J5, 6P1 |
01.2010 - 12.2012 | 7593|AER |
| Seat | Ibiza IV ST 1.2 1198 ccm, 44 KW, 60 PSHSN / TSN: 7593|AET Plattform : 6J8, 6P8 |
05.2010 - 05.2015 | 7593|AET |
| Seat | Ibiza IV ST 1.2 1198 ccm, 51 KW, 70 PSHSN / TSN: 7593|AFB Plattform : 6J8, 6P8 |
05.2010 - 05.2015 | 7593|AFB |
| Seat | Ibiza IV ST 1.2 TDi 1199 ccm, 55 KW, 75 PSHSN / TSN: 7593|AFA Plattform : 6J8, 6P8 |
04.2010 - 05.2015 | 7593|AFA |
| Seat | Ibiza IV ST 1.2 TSi 1197 ccm, 77 KW, 105 PSHSN / TSN: 7593|AFR Plattform : 6J8, 6P8 |
09.2010 - 05.2015 | 7593|AFR |
| Seat | Ibiza IV ST 1.4 1390 ccm, 63 KW, 85 PSHSN / TSN: 7593|AEU Plattform : 6J8, 6P8 |
03.2010 - 05.2015 | 7593|AEU |
| Seat | Ibiza IV ST 1.4 TSi 1390 ccm, 110 KW, 150 PSHSN / TSN: 7593|AGR Plattform : 6J8 |
02.2012 - 12.2019 | 7593|AGR |
| Seat | Ibiza IV ST 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 7593|AEV Plattform : 6J8, 6P8 |
03.2010 - 05.2015 | 7593|AEV |
| Seat | Ibiza IV ST 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|AEW Plattform : 6J8, 6P8 |
03.2010 - 05.2015 | 7593|AEW |
| Seat | Ibiza IV Sportcoupe 1.2 1198 ccm, 44 KW, 60 PSHSN / TSN: 7593|AEF Plattform : 6J1 |
07.2009 - 12.2019 | 7593|AEF |
| Seat | Ibiza IV Sportcoupe 1.2 1198 ccm, 51 KW, 70 PSHSN / TSN: 7593|ADN Plattform : 6J1, 6P5 |
07.2008 - 12.2015 | 7593|ADN |
| Seat | Ibiza IV Sportcoupe 1.2 TDi 1199 ccm, 55 KW, 75 PSHSN / TSN: 7593|AEZ Plattform : 6J1 |
05.2010 - 12.2015 | 7593|AEZ |
| Seat | Ibiza IV Sportcoupe 1.2 TSi 1197 ccm, 77 KW, 105 PSHSN / TSN: 7593|AFQ Plattform : 6J1 |
09.2010 - 12.2019 | 7593|AFQ |
| Seat | Ibiza IV Sportcoupe 1.4 1390 ccm, 63 KW, 85 PSHSN / TSN: 7593|ADM Plattform : 6J1, 6P5 |
07.2008 - 12.2019 | 7593|ADM |
| Seat | Ibiza IV Sportcoupe 1.4 TDi 1422 ccm, 59 KW, 80 PSHSN / TSN: 7593|ADP Plattform : 6J1, 6P5 |
07.2008 - 06.2010 | 7593|ADP |
| Seat | Ibiza IV Sportcoupe 1.4 TSi 1390 ccm, 110 KW, 150 PSHSN / TSN: 7593|ADX Plattform : 6J1, 6P5 |
06.2009 - 12.2012 | 7593|ADX |
| Seat | Ibiza IV Sportcoupe 1.4 TSi Cupra 1390 ccm, 132 KW, 180 PSHSN / TSN: 7593|ADW Plattform : 6J1, 6P5 |
06.2009 - 05.2015 | 7593|ADW |
| Seat | Ibiza IV Sportcoupe 1.6 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|ADO Plattform : 6J1 |
07.2008 - 12.2019 | 7593|ADO |
| Seat | Ibiza IV Sportcoupe 1.6 LPG 1598 ccm, 60 KW, 81 PSHSN / TSN: 7593|AGM Plattform : 6J1 |
05.2011 - 12.2019 | 7593|AGM |
| Seat | Ibiza IV Sportcoupe 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 7593|AEG Plattform : 6J1, 6P5 |
05.2009 - 12.2015 | 7593|AEG |
| Seat | Ibiza IV Sportcoupe 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 7593|AEH Plattform : 6J1, 6P5 |
05.2009 - 12.2015 | 7593|AEH |
| Seat | Ibiza IV Sportcoupe 1.9 TDi 1896 ccm, 66 KW, 90 PSHSN / TSN: 7593|ADQ Plattform : 6J1, 6P5 |
07.2008 - 06.2010 | 7593|ADQ |
| Seat | Ibiza IV Sportcoupe 1.9 TDi 1896 ccm, 77 KW, 105 PSHSN / TSN: 7593|ADL Plattform : 6J1, 6P5 |
07.2008 - 06.2010 | 7593|ADL |
| Seat | Ibiza IV Sportcoupe 2.0 1984 ccm, 85 KW, 115 PSPlattform : 6J1 | 10.2008 - 12.2019 | |
| Seat | Ibiza IV Sportcoupe 2.0 TDi 1968 ccm, 105 KW, 143 PSHSN / TSN: 7593|AER Plattform : 6J1 |
01.2010 - 12.2019 | 7593|AER |
