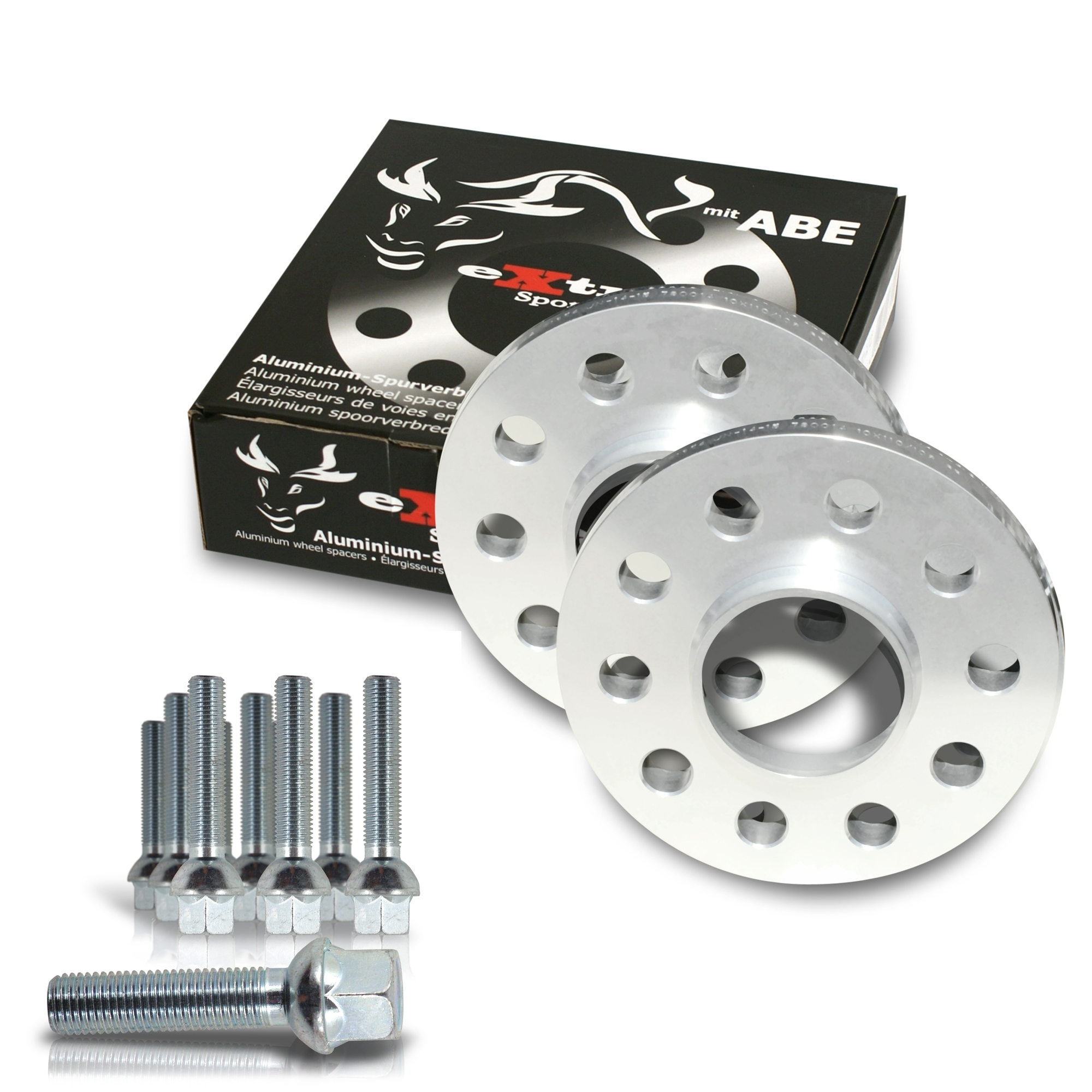

Wheel spacer kit 20mm incl. wheel bolts
NJT alum. wheel spacers 20mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 20mm per axle (10mm each side) - with centering element - hole circle 5x112 - hub hole bore 66,6mm - 10x conical wheel bolts M14x1,5 37mm Suitable for Audi A5 Sportback (B8), A5 Cabrio / Coupe (B8), S5 (B8), S5 Cabriolet 245kw (B8), S5 Sportback (B8) - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
EUR
68.95
new
https://www.jom.de/en/wheel-spacer-kit-20mm-incl-wheel-bolts-audi-a5-b81
68,95 € RRP 74,95 €
🟢 Sofort versandfähig, ausreichende Stückzahl
Product.Nr.: 790683 790683
EAN: 4048961102698 4048961102698
Manufacturer: NJT GbR NJT GbR
weight: 1,84 kg 1.8400 kg
product description

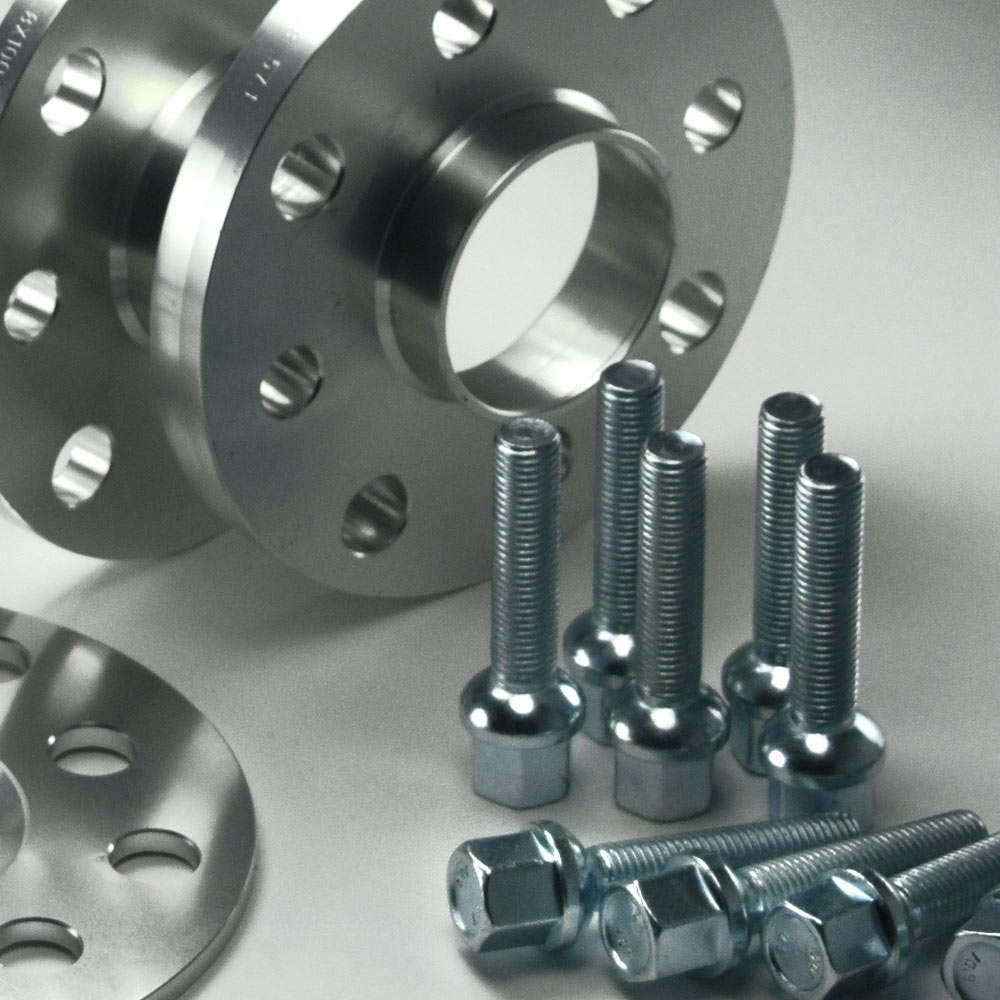

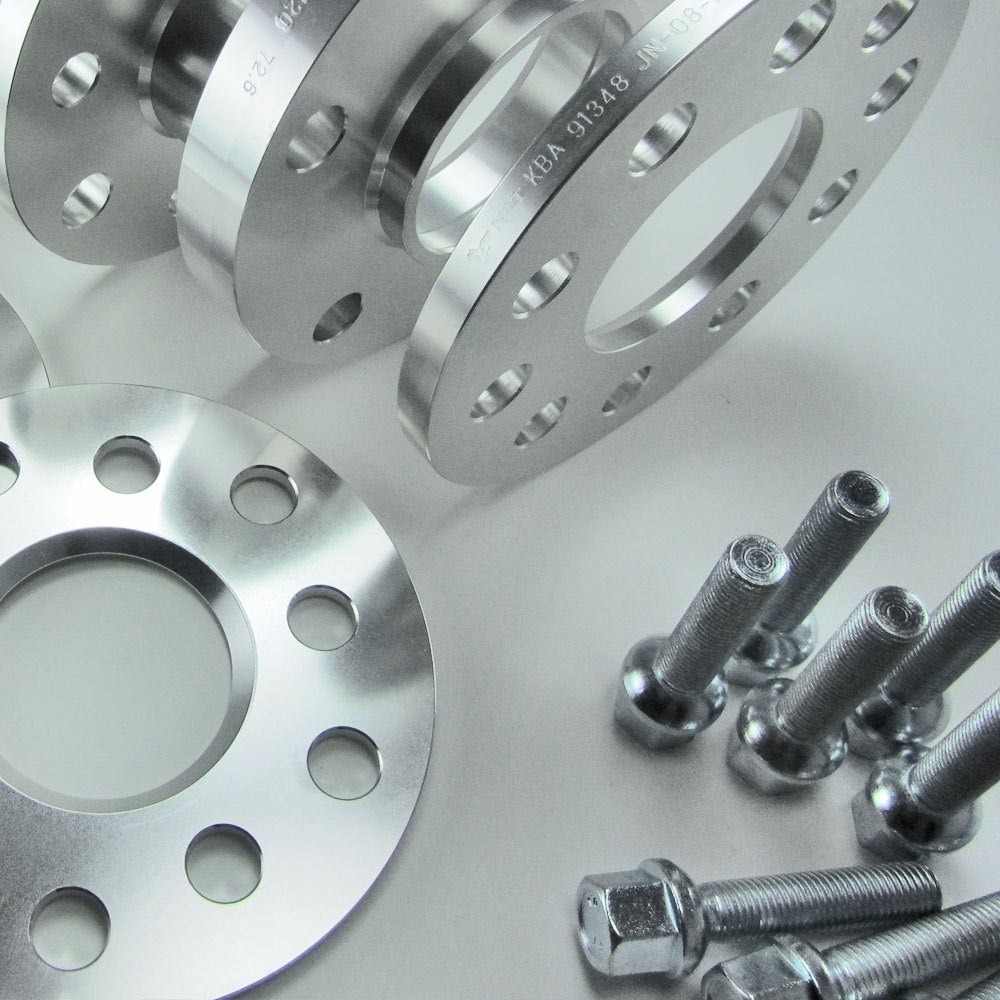

NJT alum. wheel spacers 20mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 20mm per axle (10mm each side)
- with centering element
- hole circle 5x112
- hub hole bore 66,6mm
- 10x conical wheel bolts M14x1,5 37mm
Suitable for Audi A5 Sportback (B8), A5 Cabrio / Coupe (B8), S5 (B8), S5 Cabriolet 245kw (B8), S5 Sportback (B8)

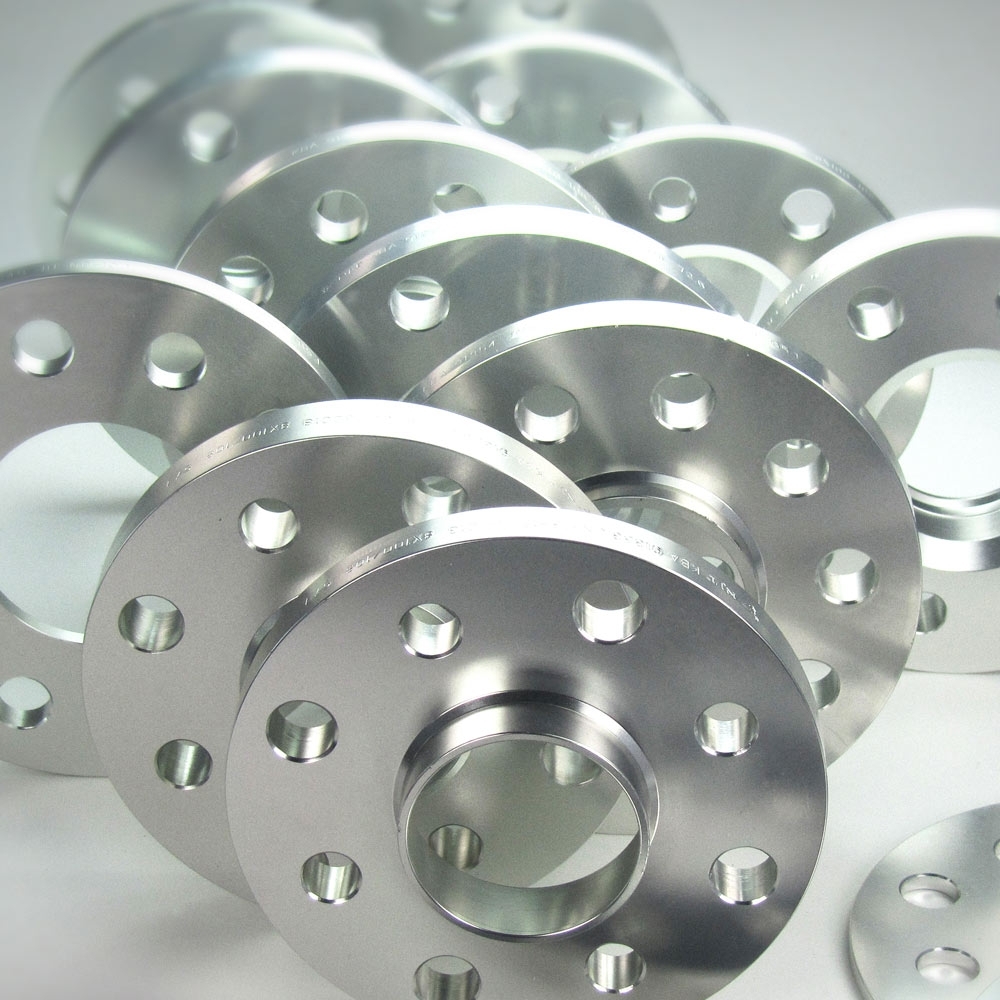

- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)

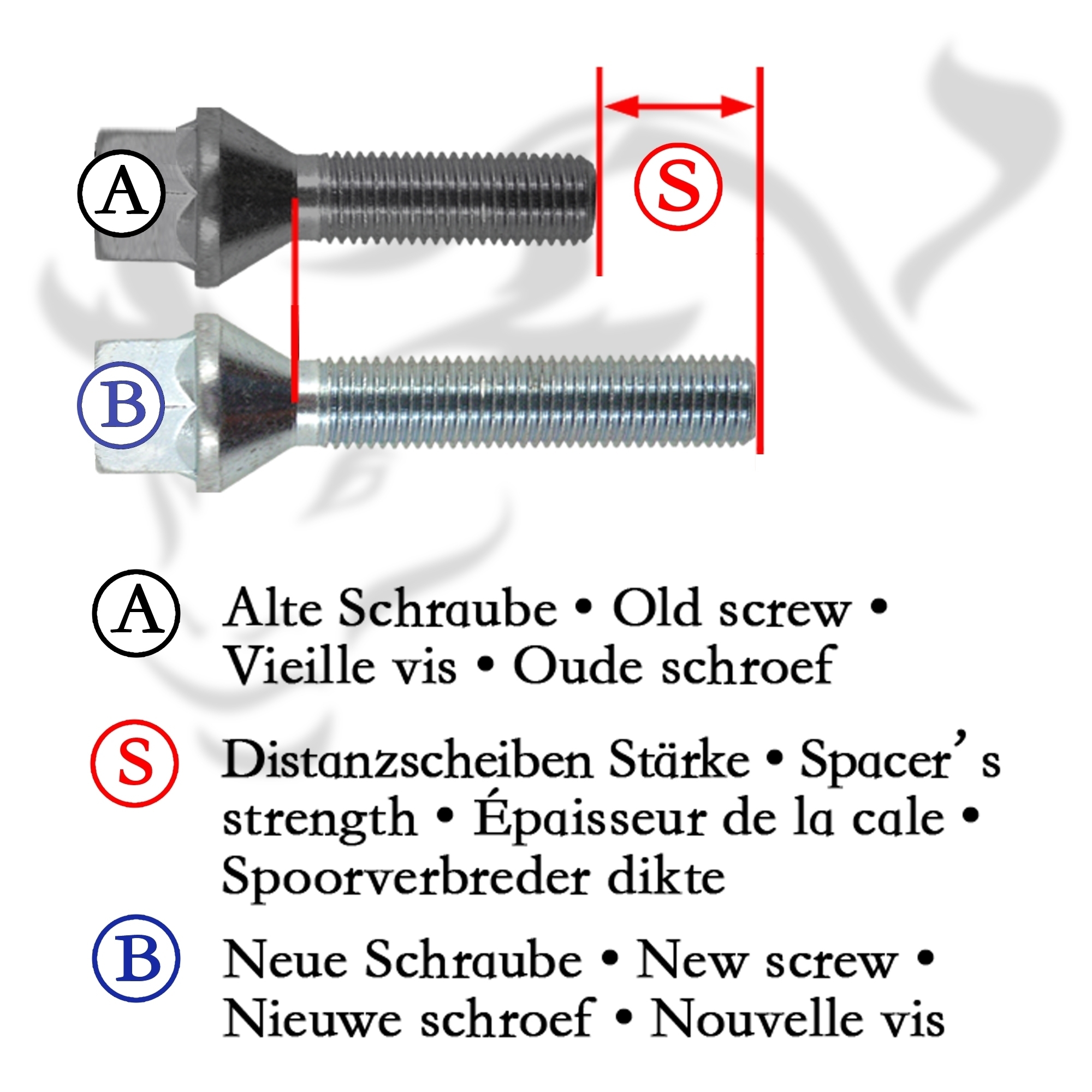

Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length

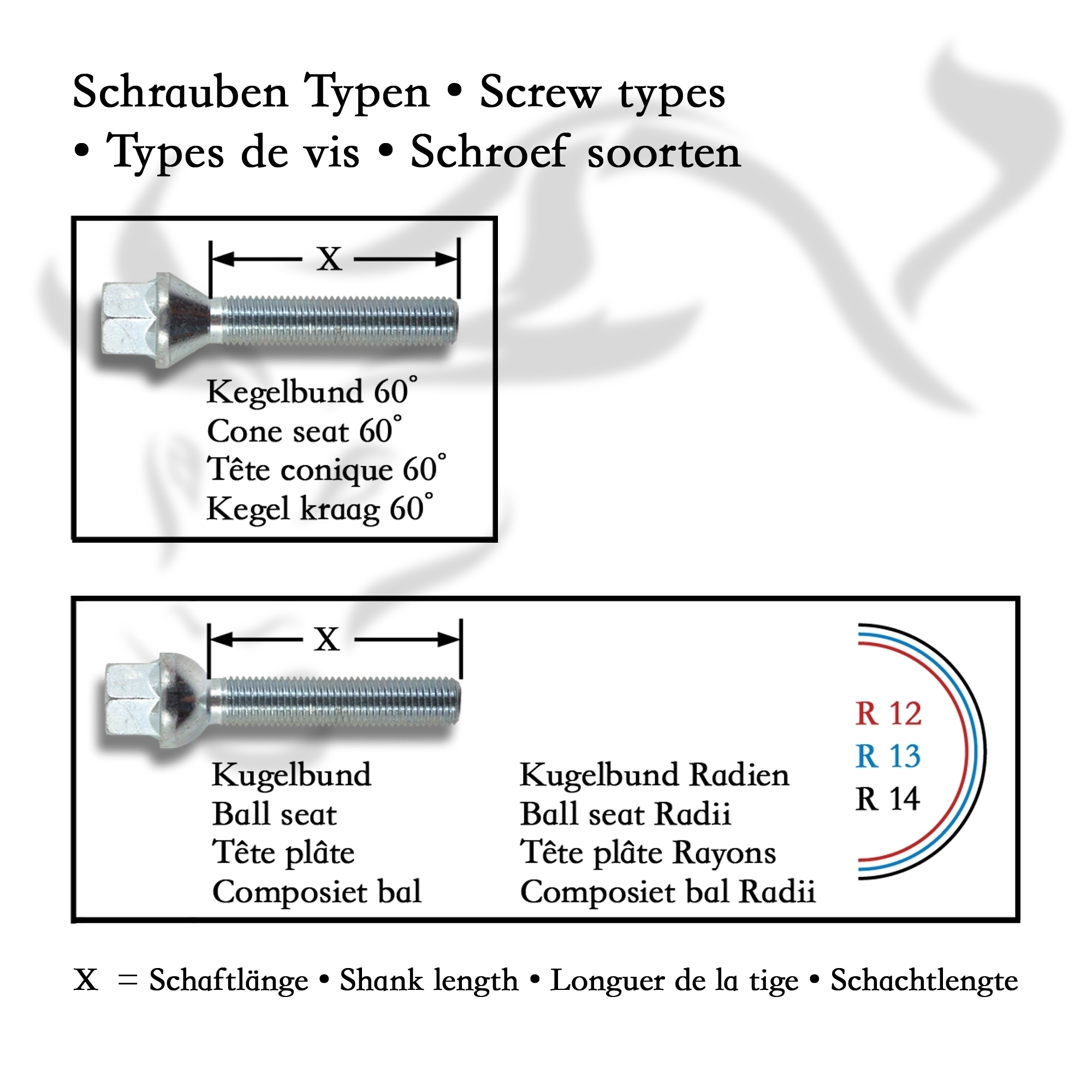

- check whether conical or spherical collar bolts are required
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
Product variations
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| Audi | A5 1.8 TFSI 1798 ccm, 118 KW, 160 PSHSN / TSN: 0588|AKR Plattform : 8T3 |
05.2009 - 09.2011 | 0588|AKR |
| Audi | A5 1.8 TFSI 1798 ccm, 125 KW, 170 PSHSN / TSN: 0588|AGB Plattform : 8T3 |
10.2007 - 01.2017 | 0588|AGB |
| Audi | A5 2.0 TDI 1968 ccm, 120 KW, 163 PSHSN / TSN: 0588|AHF Plattform : 8T3 |
08.2008 - 01.2017 | 0588|AHF |
| Audi | A5 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588|AGK Plattform : 8T3 |
08.2008 - 03.2012 | 0588|AGK |
| Audi | A5 2.0 TDI 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588|ARZ Plattform : 8T3 |
10.2011 - 01.2017 | 0588|ARZ |
| Audi | A5 2.0 TDI quattro 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588|AIM Plattform : 8T3 |
08.2008 - 03.2012 | 0588|AIM |
| Audi | A5 2.0 TDI quattro 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588|ASZ Plattform : 8T3 |
12.2011 - 01.2017 | 0588|ASZ |
| Audi | A5 2.0 TFSI 1984 ccm, 132 KW, 180 PSHSN / TSN: 0588|AIQ Plattform : 8T3 |
11.2008 - 03.2012 | 0588|AIQ |
| Audi | A5 2.0 TFSI 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588|AGC Plattform : 8T3 |
06.2008 - 11.2013 | 0588|AGC |
| Audi | A5 2.0 TFSI quattro 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588|AHH Plattform : 8T3 |
06.2008 - 01.2017 | 0588|AHH |
| Audi | A5 2.7 TDI 2698 ccm, 120 KW, 163 PSHSN / TSN: 0588|AGN<>0588|ALL Plattform : 8T3 |
09.2007 - 03.2012 | 0588|AGN<>0588|ALL |
| Audi | A5 2.7 TDI 2698 ccm, 140 KW, 190 PSHSN / TSN: 0588|AGF Plattform : 8T3 |
06.2007 - 03.2012 | 0588|AGF |
| Audi | A5 3.0 TDI quattro 2967 ccm, 155 KW, 211 PSHSN / TSN: 0588|AHT Plattform : 8T3 |
03.2008 - 05.2010 | 0588|AHT |
| Audi | A5 3.0 TDI quattro 2967 ccm, 176 KW, 240 PSHSN / TSN: 0588|AGG Plattform : 8T3 |
06.2007 - 03.2012 | 0588|AGG |
| Audi | A5 3.0 TDI quattro 2967 ccm, 180 KW, 245 PSHSN / TSN: 0588|ASB Plattform : 8T3 |
10.2011 - 01.2017 | 0588|ASB |
| Audi | A5 3.0 TFSI quattro 2995 ccm, 200 KW, 272 PSHSN / TSN: 0588|ATF Plattform : 8T3 |
12.2011 - 01.2017 | 0588|ATF |
| Audi | A5 3.2 FSI 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588|AGD Plattform : 8T3 |
06.2007 - 03.2012 | 0588|AGD |
| Audi | A5 3.2 FSI quattro 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588|AGE Plattform : 8T3 |
06.2007 - 03.2012 | 0588|AGE |
| Audi | A5 Cabriolet 1.8 TFSI 1798 ccm, 118 KW, 160 PSHSN / TSN: 0588|ALC Plattform : 8F7 |
09.2009 - 03.2012 | 0588|ALC |
| Audi | A5 Cabriolet 1.8 TFSI 1798 ccm, 125 KW, 170 PSHSN / TSN: 0588|ASH Plattform : 8F7 |
10.2011 - 03.2016 | 0588|ASH |
| Audi | A5 Cabriolet 2.0 TDI 1968 ccm, 105 KW, 143 PSHSN / TSN: 0588|AUG Plattform : 8F7 |
10.2011 - 05.2015 | 0588|AUG |
| Audi | A5 Cabriolet 2.0 TDI 1968 ccm, 120 KW, 163 PSHSN / TSN: 0588|AKT Plattform : 8F7 |
05.2009 - 06.2014 | 0588|AKT |
| Audi | A5 Cabriolet 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588|AKS Plattform : 8F7 |
05.2009 - 03.2012 | 0588|AKS |
| Audi | A5 Cabriolet 2.0 TDI 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588|ASI Plattform : 8F7 |
10.2011 - 01.2017 | 0588|ASI |
| Audi | A5 Cabriolet 2.0 TFSI 1984 ccm, 132 KW, 180 PSHSN / TSN: 0588|AJY Plattform : 8F7 |
03.2009 - 03.2012 | 0588|AJY |
| Audi | A5 Cabriolet 2.0 TFSI 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588|AJZ Plattform : 8F7 |
03.2009 - 06.2014 | 0588|AJZ |
| Audi | A5 Cabriolet 2.0 TFSI quattro 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588|AKA Plattform : 8F7 |
03.2009 - 01.2017 | 0588|AKA |
| Audi | A5 Cabriolet 2.7 TDI 2698 ccm, 120 KW, 163 PSHSN / TSN: 0588|AKU Plattform : 8F7 |
05.2009 - 03.2012 | 0588|AKU |
| Audi | A5 Cabriolet 2.7 TDI 2698 ccm, 140 KW, 190 PSHSN / TSN: 0588|AKD Plattform : 8F7 |
03.2009 - 03.2012 | 0588|AKD |
| Audi | A5 Cabriolet 3.0 TDI 2967 ccm, 150 KW, 204 PSHSN / TSN: 0588|ASJ Plattform : 8F7 |
10.2011 - 01.2017 | 0588|ASJ |
| Audi | A5 Cabriolet 3.0 TDI quattro 2967 ccm, 176 KW, 240 PSHSN / TSN: 0588|AKE Plattform : 8F7 |
03.2009 - 03.2012 | 0588|AKE |
| Audi | A5 Cabriolet 3.0 TDI quattro 2967 ccm, 180 KW, 245 PSHSN / TSN: 0588|ASK Plattform : 8F7 |
10.2011 - 01.2017 | 0588|ASK |
| Audi | A5 Cabriolet 3.0 TFSI quattro 2995 ccm, 200 KW, 272 PSHSN / TSN: 0588|ATE Plattform : 8F7 |
11.2011 - 01.2017 | 0588|ATE |
| Audi | A5 Cabriolet 3.2 FSI 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588|AKB Plattform : 8F7 |
03.2009 - 03.2012 | 0588|AKB |
| Audi | A5 Cabriolet 3.2 FSI quattro 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588|AKC Plattform : 8F7 |
03.2009 - 03.2012 | 0588|AKC |
| Audi | A5 Cabriolet S5 quattro 2995 ccm, 245 KW, 333 PSHSN / TSN: 0588|AKF Plattform : 8F7 |
06.2009 - 01.2017 | 0588|AKF |
| Audi | A5 RS5 quattro 4163 ccm, 331 KW, 450 PSHSN / TSN: 7967|AAO Plattform : 8T3 |
03.2010 - 08.2015 | 7967|AAO |
| Audi | A5 S5 quattro 2995 ccm, 245 KW, 333 PSHSN / TSN: 0588|ASC Plattform : 8T3 |
10.2011 - 01.2017 | 0588|ASC |
| Audi | A5 S5 quattro 4163 ccm, 260 KW, 354 PSHSN / TSN: 0588|AGA Plattform : 8T3 |
06.2007 - 03.2012 | 0588|AGA |
| Audi | A5 Sportback 1.8 TFSI 1798 ccm, 118 KW, 160 PSHSN / TSN: 0588|ALM<>0588|APT Plattform : 8TA |
11.2009 - 09.2011 | 0588|ALM<>0588|APT |
| Audi | A5 Sportback 1.8 TFSI 1798 ccm, 125 KW, 170 PSHSN / TSN: 0588|ASD<>0588|ATX Plattform : 8TA |
08.2011 - 01.2017 | 0588|ASD<>0588|ATX |
| Audi | A5 Sportback 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0588|ALK<>0588|API Plattform : 8TA |
09.2009 - 01.2017 | 0588|ALK<>0588|API |
| Audi | A5 Sportback 2.0 TDI 1968 ccm, 105 KW, 143 PSHSN / TSN: 0588|ALI<>0588|APG Plattform : 8TA |
09.2009 - 01.2017 | 0588|ALI<>0588|APG |
| Audi | A5 Sportback 2.0 TDI 1968 ccm, 120 KW, 163 PSHSN / TSN: 0588|AKW<>0588|APM Plattform : 8TA |
09.2009 - 01.2017 | 0588|AKW<>0588|APM |
| Audi | A5 Sportback 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588|AKP<>0588|APK Plattform : 8TA |
09.2009 - 03.2012 | 0588|AKP<>0588|APK |
| Audi | A5 Sportback 2.0 TDI 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588|ASE<>0588|ATW Plattform : 8TA |
10.2011 - 01.2017 | 0588|ASE<>0588|ATW |
| Audi | A5 Sportback 2.0 TDI quattro 1968 ccm, 125 KW, 170 PSHSN / TSN: 0588|ALF<>0588|APL Plattform : 8TA |
09.2009 - 03.2012 | 0588|ALF<>0588|APL |
| Audi | A5 Sportback 2.0 TDI quattro 1968 ccm, 130 KW, 177 PSHSN / TSN: 0588|ATA<>0588|AUQ Plattform : 8TA |
12.2011 - 01.2017 | 0588|ATA<>0588|AUQ |
| Audi | A5 Sportback 2.0 TFSI 1984 ccm, 132 KW, 180 PSHSN / TSN: 0588|ALD<>0588|APV Plattform : 8TA |
09.2009 - 06.2014 | 0588|ALD<>0588|APV |
| Audi | A5 Sportback 2.0 TFSI 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588|ALE<>0588|APW Plattform : 8TA |
09.2009 - 11.2013 | 0588|ALE<>0588|APW |
| Audi | A5 Sportback 2.0 TFSI quattro 1984 ccm, 155 KW, 211 PSHSN / TSN: 0588|AKL<>0588|APX Plattform : 8TA |
09.2009 - 01.2017 | 0588|AKL<>0588|APX |
| Audi | A5 Sportback 2.7 TDI 2698 ccm, 120 KW, 163 PSHSN / TSN: 0588|AQB Plattform : 8TA |
09.2009 - 01.2017 | 0588|AQB |
| Audi | A5 Sportback 2.7 TDI 2698 ccm, 140 KW, 190 PSHSN / TSN: 0588|AKN<>0588|AQA Plattform : 8TA |
09.2009 - 03.2012 | 0588|AKN<>0588|AQA |
| Audi | A5 Sportback 3.0 TDI 2967 ccm, 150 KW, 204 PSHSN / TSN: 0588|ASF<>0588|ATY Plattform : 8TA |
10.2011 - 01.2017 | 0588|ASF<>0588|ATY |
| Audi | A5 Sportback 3.0 TDI quattro 2967 ccm, 176 KW, 240 PSHSN / TSN: 0588|AKO<>0588|APQ Plattform : 8TA |
09.2009 - 03.2012 | 0588|AKO<>0588|APQ |
| Audi | A5 Sportback 3.0 TDI quattro 2967 ccm, 180 KW, 245 PSHSN / TSN: 0588|ASG<>0588|ATV Plattform : 8TA |
10.2011 - 01.2017 | 0588|ASG<>0588|ATV |
| Audi | A5 Sportback 3.0 TFSI quattro 2995 ccm, 200 KW, 272 PSHSN / TSN: 0588|ATG<>0588|AUR Plattform : 8TA |
12.2011 - 01.2017 | 0588|ATG<>0588|AUR |
| Audi | A5 Sportback 3.2 FSI quattro 3197 ccm, 195 KW, 265 PSHSN / TSN: 0588|AKM<>0588|APP Plattform : 8TA |
09.2009 - 03.2012 | 0588|AKM<>0588|APP |
| Audi | A5 Sportback S5 quattro 2995 ccm, 245 KW, 333 PSHSN / TSN: 0588|ALN<>0588|APN Plattform : 8TA |
01.2010 - 01.2017 | 0588|ALN<>0588|APN |
