Wheel spacer kit 30mm incl. wheel bolts, for VW Golf 5 1K / VW Jetta 1KM
NJT alum. wheel spacers 30mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 30mm per axle (15mm each side) - with centering element - hole circle 5x100 / 5x112 - hub hole bore 57,1mm -10x spherical wheel bolts M14x1,5 41mm Suitable for: Volkswagen: Golf V (1K) Jetta (1KM) - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
EUR
68.95
new
https://www.jom.de/en/wheel-spacer-kit-30mm-incl-wheel-bolts-vw-golf-5-1k-vw-jetta-1km
68,95 € RRP 74,95 €
🟢 Sofort versandfähig, ausreichende Stückzahl
Product.Nr.: 790475 790475
EAN: 4048961100977 4048961100977
Manufacturer: NJT GbR NJT GbR
weight: 1,95 kg 1.9500 kg
product description

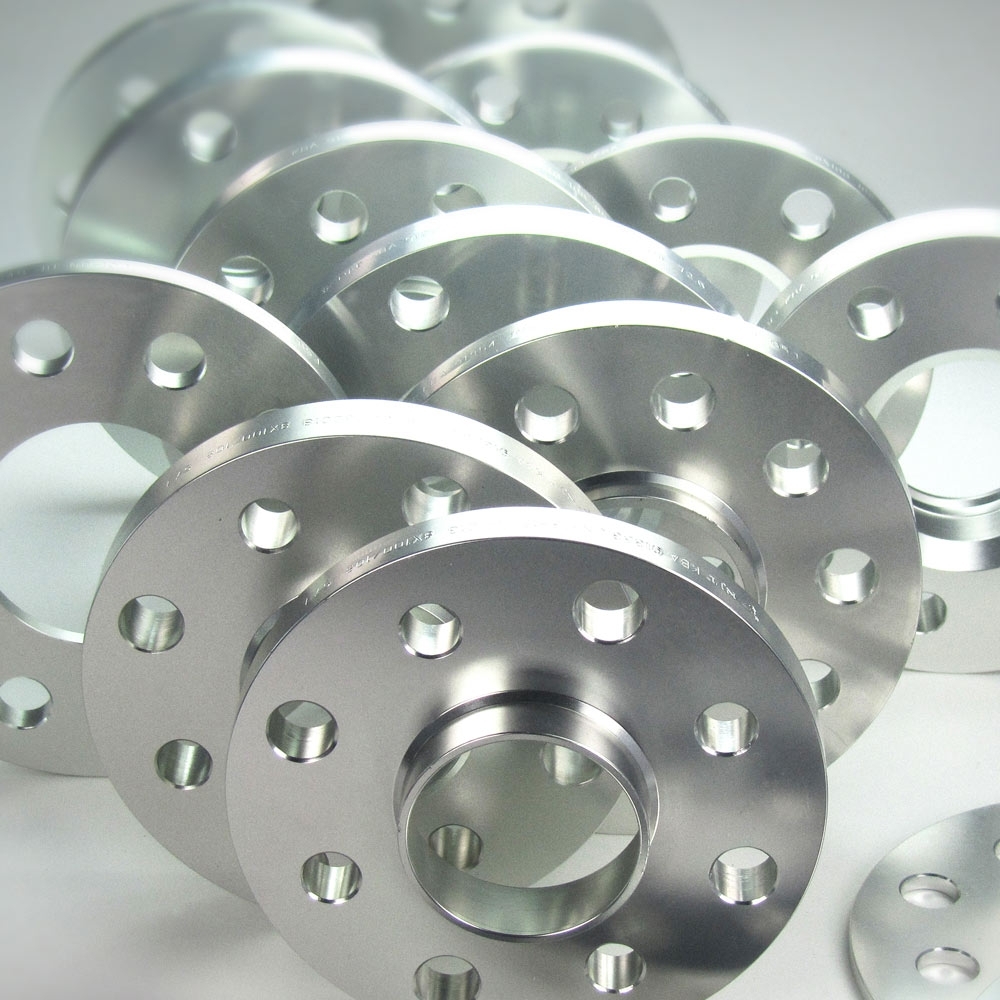

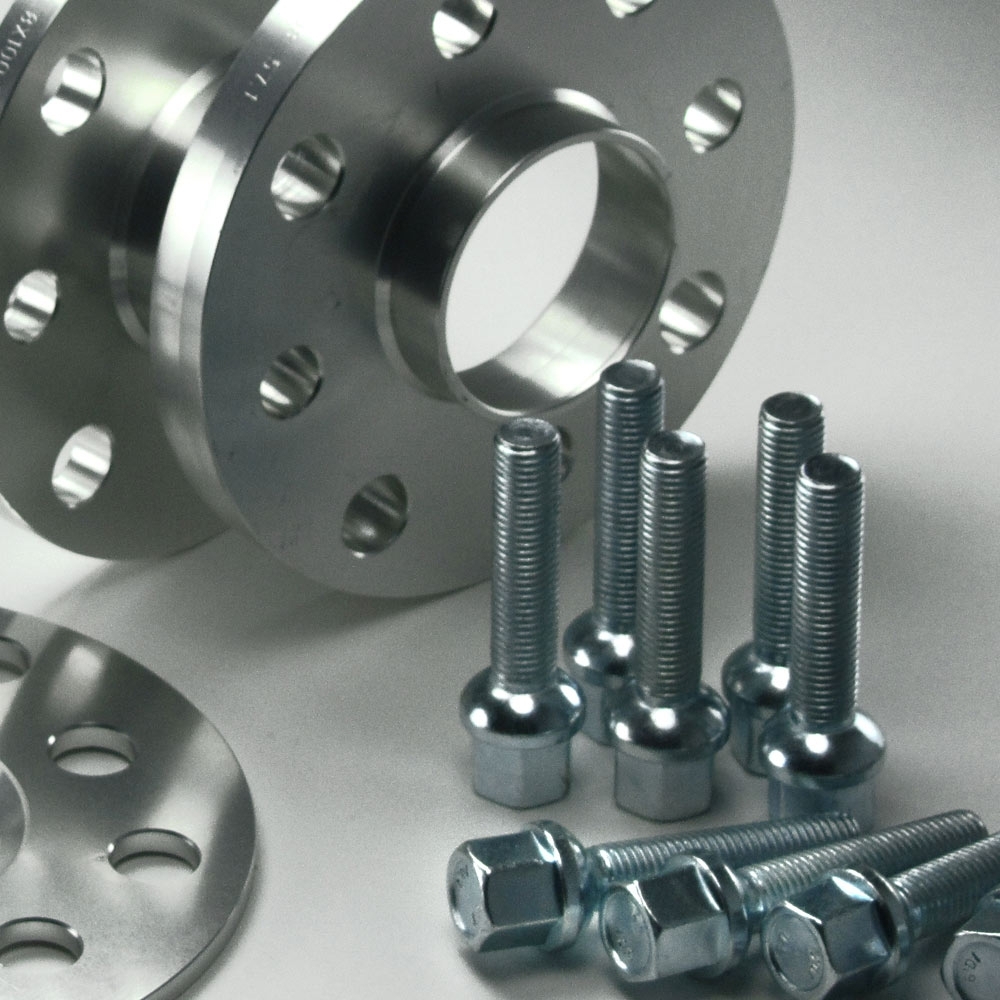

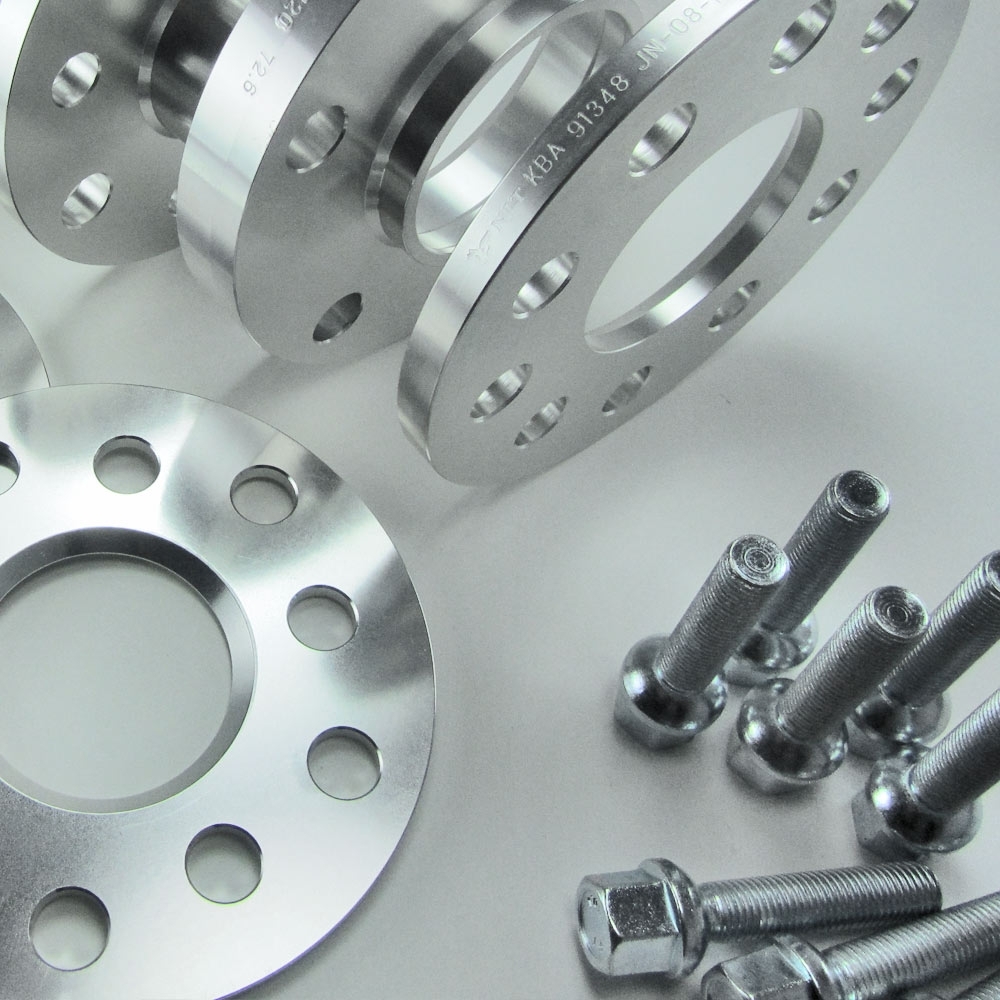

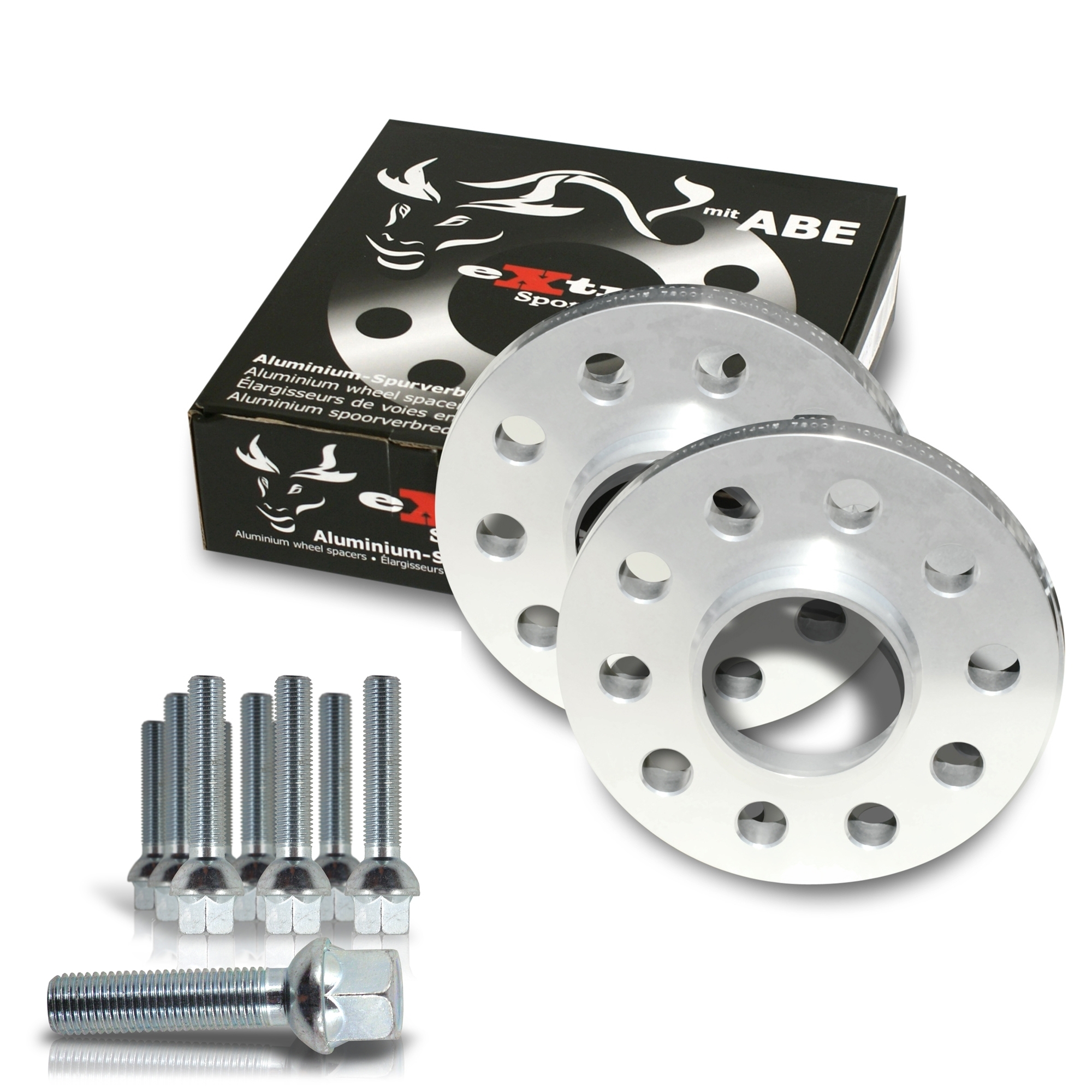

NJT alum. wheel spacers 30mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 30mm per axle (15mm each side)
- with centering element
- hole circle 5x100 / 5x112
- hub hole bore 57,1mm
-10x spherical wheel bolts M14x1,5 41mm
Suitable for:
Volkswagen:
Golf V (1K)
Jetta (1KM)
- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)

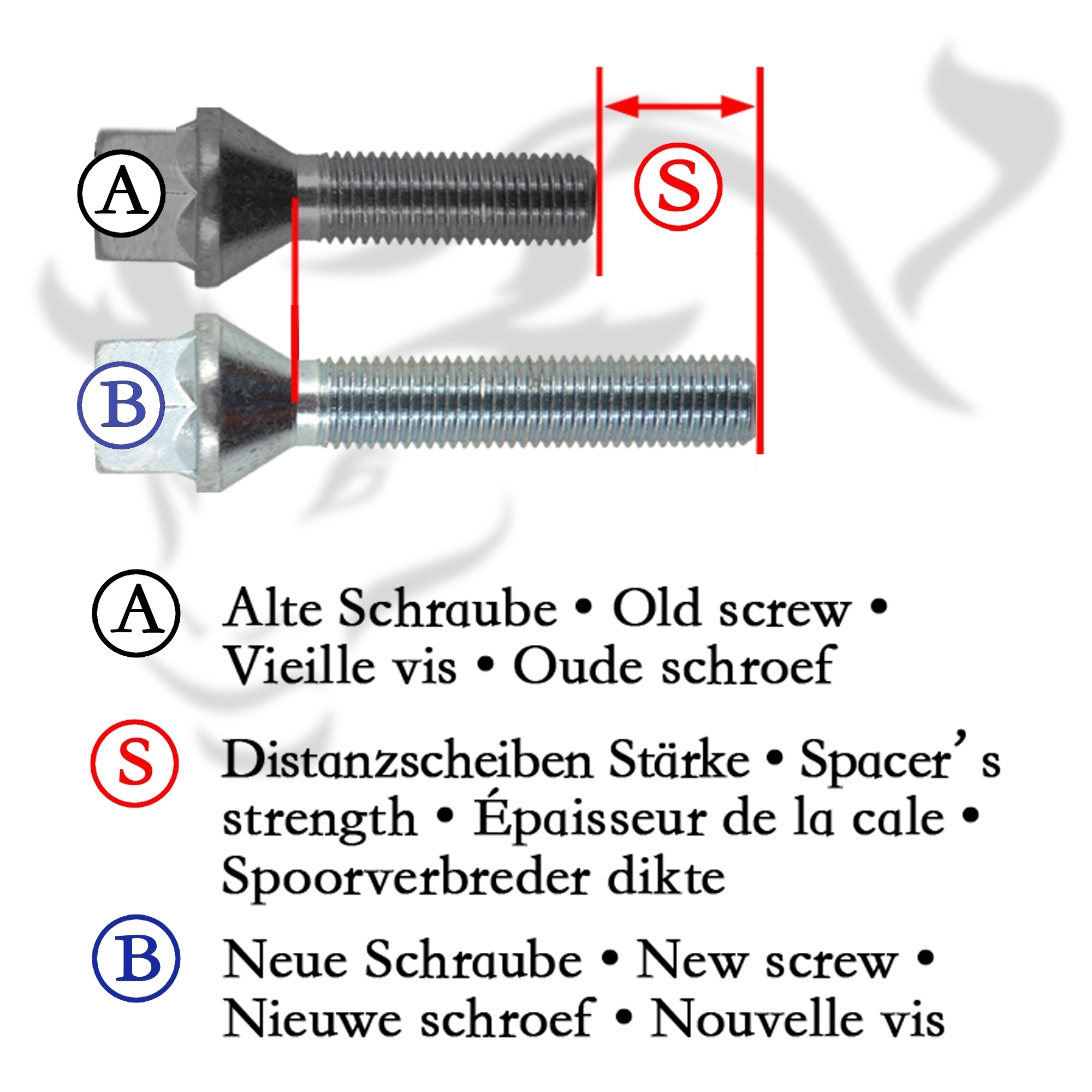

Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length

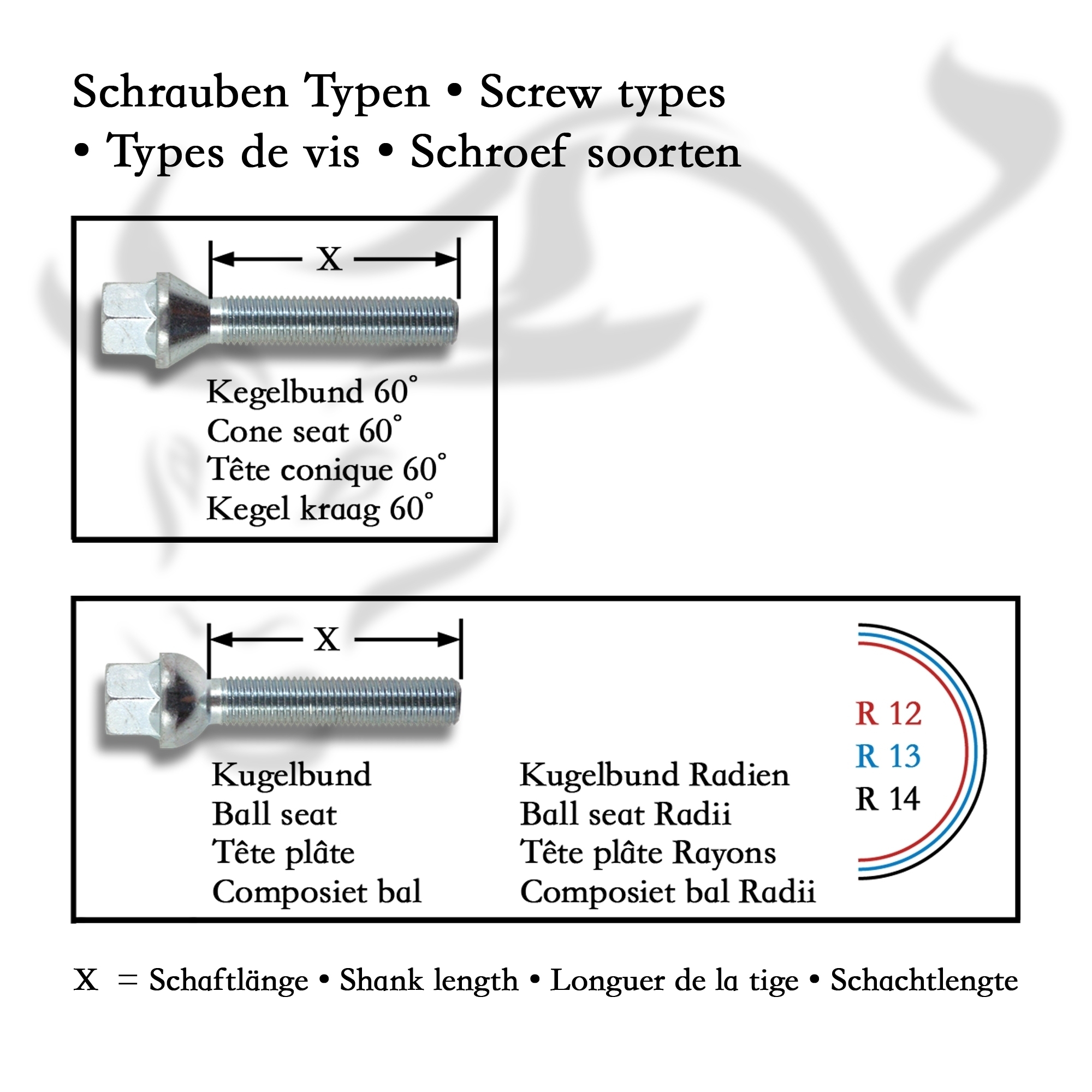

- check whether conical or spherical collar bolts are required
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
Product variations
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| VW | Golf V 1.4 16V 1390 ccm, 55 KW, 75 PSHSN / TSN: 0603|721<>0603|ADH Plattform : 1K1 |
10.2003 - 05.2006 | 0603|721<>0603|ADH |
| VW | Golf V 1.4 16V 1390 ccm, 59 KW, 80 PSHSN / TSN: 0603|AKF<>0603|AMD Plattform : 1K1 |
05.2006 - 11.2008 | 0603|AKF<>0603|AMD |
| VW | Golf V 1.4 FSI 1390 ccm, 66 KW, 90 PSHSN / TSN: 0603|736<>0603|ADO Plattform : 1K1 |
10.2003 - 07.2006 | 0603|736<>0603|ADO |
| VW | Golf V 1.4 TSI 1390 ccm, 103 KW, 140 PSHSN / TSN: 0603|AKE<>0603|AMA Plattform : 1K1 |
05.2006 - 11.2008 | 0603|AKE<>0603|AMA |
| VW | Golf V 1.4 TSI 1390 ccm, 125 KW, 170 PSHSN / TSN: 0603|ADQ<>0603|ALW Plattform : 1K1 |
11.2005 - 11.2008 | 0603|ADQ<>0603|ALW |
| VW | Golf V 1.4 TSI 1390 ccm, 90 KW, 122 PSHSN / TSN: 0603|AMK Plattform : 1K1 |
05.2007 - 11.2008 | 0603|AMK |
| VW | Golf V 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|743<>0603|ADJ<>0603|AMB Plattform : 1K1 |
01.2004 - 11.2008 | 0603|743<>0603|ADJ<>0603|AMB |
| VW | Golf V 1.6 FSI 1598 ccm, 85 KW, 115 PSHSN / TSN: 0603|722<>0603|ADP<>0603|ALV Plattform : 1K1 |
10.2003 - 07.2008 | 0603|722<>0603|ADP<>0603|ALV |
| VW | Golf V 1.6 MultiFuel 1595 ccm, 75 KW, 102 PSPlattform : 1K1 | 10.2007 - 11.2008 | |
| VW | Golf V 1.8 GTI 1781 ccm, 132 KW, 179 PSPlattform : 1K1 | 08.2006 - 11.2008 | |
| VW | Golf V 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0603|745<>0603|ADU<>0603|AMH Plattform : 1K1 |
05.2004 - 11.2008 | 0603|745<>0603|ADU<>0603|AMH |
| VW | Golf V 1.9 TDI 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|720<>0603|ADK<>0603|ALX Plattform : 1K1 |
10.2003 - 11.2008 | 0603|720<>0603|ADK<>0603|ALX |
| VW | Golf V 1.9 TDI 4motion 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|760<>0603|ADL<>0603|ALY Plattform : 1K1 |
08.2004 - 11.2008 | 0603|760<>0603|ADL<>0603|ALY |
| VW | Golf V 2.0 1984 ccm, 85 KW, 116 PSPlattform : 1K1 | 01.2005 - 11.2008 | |
| VW | Golf V 2.0 FSI 1984 ccm, 110 KW, 150 PSHSN / TSN: 0603|741<>0603|ADR<>0603|AMF Plattform : 1K1 |
01.2004 - 11.2008 | 0603|741<>0603|ADR<>0603|AMF |
| VW | Golf V 2.0 FSI 4motion 1984 ccm, 110 KW, 150 PSHSN / TSN: 0603|762<>0603|ADS<>0603|AME Plattform : 1K1 |
08.2004 - 11.2008 | 0603|762<>0603|ADS<>0603|AME |
| VW | Golf V 2.0 GTI 1984 ccm, 147 KW, 200 PSHSN / TSN: 0603|764<>0603|ADF<>0603|AMG Plattform : 1K1 |
10.2004 - 02.2009 | 0603|764<>0603|ADF<>0603|AMG |
| VW | Golf V 2.0 GTI 1984 ccm, 169 KW, 230 PSHSN / TSN: 0603|AKX<>0603|AMI Plattform : 1K1 |
09.2006 - 12.2008 | 0603|AKX<>0603|AMI |
| VW | Golf V 2.0 SDI 1968 ccm, 55 KW, 75 PSHSN / TSN: 0603|742<>0603|ADI<>0603|ALS Plattform : 1K1 |
01.2004 - 11.2008 | 0603|742<>0603|ADI<>0603|ALS |
| VW | Golf V 2.0 TDI 16V 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|724<>0603|ADM<>0603|ALT Plattform : 1K1 |
10.2003 - 11.2008 | 0603|724<>0603|ADM<>0603|ALT |
| VW | Golf V 2.0 TDI 16V 4motion 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|761<>0603|ADN<>0603|ALU Plattform : 1K1 |
08.2004 - 11.2008 | 0603|761<>0603|ADN<>0603|ALU |
| VW | Golf V 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|723<>0603|ADG<>0603|ALR Plattform : 1K1 |
10.2003 - 11.2008 | 0603|723<>0603|ADG<>0603|ALR |
| VW | Golf V 2.0 TDI 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|724<>0603|ADM<>0603|ALT Plattform : 1K1 |
12.2004 - 11.2008 | 0603|724<>0603|ADM<>0603|ALT |
| VW | Golf V 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0603|ADT<>0603|ALZ Plattform : 1K1 |
11.2005 - 11.2008 | 0603|ADT<>0603|ALZ |
| VW | Golf V 2.0 TDI 4motion 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ADN<>0603|ALU Plattform : 1K1 |
08.2004 - 11.2008 | 0603|ADN<>0603|ALU |
| VW | Golf V 3.2 3189 ccm, 184 KW, 250 PSPlattform : 1K1 | 09.2005 - 11.2008 | |
| VW | Golf V 3.2 R32 4motion 3189 ccm, 184 KW, 250 PSHSN / TSN: 0603|820<>0603|ADV<>0603|AMC Plattform : 1K1 |
11.2005 - 11.2008 | 0603|820<>0603|ADV<>0603|AMC |
| VW | Golf V Variant 1.4 1390 ccm, 59 KW, 80 PSHSN / TSN: 0603|AMM Plattform : 1K5 |
06.2007 - 07.2009 | 0603|AMM |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 103 KW, 140 PSHSN / TSN: 0603|ALF Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALF |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 118 KW, 160 PSHSN / TSN: 0603|ANX Plattform : 1K5 |
07.2008 - 07.2009 | 0603|ANX |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 125 KW, 170 PSHSN / TSN: 0603|ALJ Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALJ |
| VW | Golf V Variant 1.4 TSI 1390 ccm, 90 KW, 122 PSHSN / TSN: 0603|AMN Plattform : 1K5 |
06.2007 - 07.2009 | 0603|AMN |
| VW | Golf V Variant 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|ALG Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALG |
| VW | Golf V Variant 1.6 MultiFuel 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|AOW Plattform : 1K5 |
11.2007 - 07.2009 | 0603|AOW |
| VW | Golf V Variant 1.9 TDI 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|ALD Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALD |
| VW | Golf V Variant 1.9 TDI 4motion 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|ANH Plattform : 1K5 |
01.2008 - 07.2009 | 0603|ANH |
| VW | Golf V Variant 2.0 1984 ccm, 147 KW, 200 PSHSN / TSN: 0603|ALK Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALK |
| VW | Golf V Variant 2.0 TDI 16V 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ALE Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALE |
| VW | Golf V Variant 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|ALI Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALI |
| VW | Golf V Variant 2.0 TDI 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ALE Plattform : 1K5 |
06.2007 - 07.2009 | 0603|ALE |
| VW | Golf V Variant 2.0 TDI 4motion 1968 ccm, 100 KW, 136 PSPlattform : 1K5 | 06.2007 - 07.2009 | |
| VW | Jetta III 1.4 TSI 1390 ccm, 103 KW, 140 PSHSN / TSN: 0603|AKI Plattform : 1K2 |
07.2006 - 10.2010 | 0603|AKI |
| VW | Jetta III 1.4 TSI 1390 ccm, 118 KW, 160 PSHSN / TSN: 0603|ANW Plattform : 1K2 |
07.2008 - 10.2010 | 0603|ANW |
| VW | Jetta III 1.4 TSI 1390 ccm, 125 KW, 170 PSHSN / TSN: 0603|AKG Plattform : 1K2 |
07.2006 - 10.2010 | 0603|AKG |
| VW | Jetta III 1.4 TSI 1390 ccm, 90 KW, 122 PSHSN / TSN: 0603|AML Plattform : 1K2 |
05.2007 - 10.2010 | 0603|AML |
| VW | Jetta III 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|816<>0603|ACT Plattform : 1K2 |
09.2004 - 10.2010 | 0603|816<>0603|ACT |
| VW | Jetta III 1.6 FSI 1598 ccm, 85 KW, 115 PSHSN / TSN: 0603|831<>0603|ACR Plattform : 1K2 |
09.2005 - 10.2010 | 0603|831<>0603|ACR |
| VW | Jetta III 1.6 MultiFuel 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|AOV Plattform : 1K2 |
01.2008 - 10.2010 | 0603|AOV |
| VW | Jetta III 1.6 TDI 1598 ccm, 66 KW, 90 PSHSN / TSN: 0603|ASD Plattform : 1K2 |
12.2009 - 10.2010 | 0603|ASD |
| VW | Jetta III 1.6 TDI 1598 ccm, 77 KW, 105 PSHSN / TSN: 0603|APX Plattform : 1K2 |
06.2009 - 10.2010 | 0603|APX |
| VW | Jetta III 1.9 TDI 1896 ccm, 77 KW, 105 PSHSN / TSN: 0603|815<>0603|ACP Plattform : 1K2 |
08.2005 - 10.2010 | 0603|815<>0603|ACP |
| VW | Jetta III 2.0 FSI 1984 ccm, 110 KW, 150 PSHSN / TSN: 0603|814<>0603|ACS Plattform : 1K2 |
08.2005 - 10.2010 | 0603|814<>0603|ACS |
| VW | Jetta III 2.0 TDI 16V 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|813<>0603|ACQ Plattform : 1K2 |
08.2005 - 10.2010 | 0603|813<>0603|ACQ |
| VW | Jetta III 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|ACO Plattform : 1K2 |
09.2005 - 10.2010 | 0603|ACO |
| VW | Jetta III 2.0 TDI 1968 ccm, 103 KW, 140 PSHSN / TSN: 0603|ACQ Plattform : 1K2 |
10.2005 - 10.2010 | 0603|ACQ |
| VW | Jetta III 2.0 TDI 1968 ccm, 125 KW, 170 PSHSN / TSN: 0603|AKH Plattform : 1K2 |
10.2006 - 10.2010 | 0603|AKH |
| VW | Jetta III 2.0 TFSI 1984 ccm, 147 KW, 200 PSHSN / TSN: 0603|832<>0603|ACU Plattform : 1K2 |
10.2005 - 10.2010 | 0603|832<>0603|ACU |
| VW | Jetta III 2.5 2480 ccm, 110 KW, 150 PSPlattform : 1K2 | 01.2006 - 10.2010 | |
| VW | Jetta III 2.5 2480 ccm, 125 KW, 170 PSPlattform : 1K2 | 07.2008 - 10.2010 |
