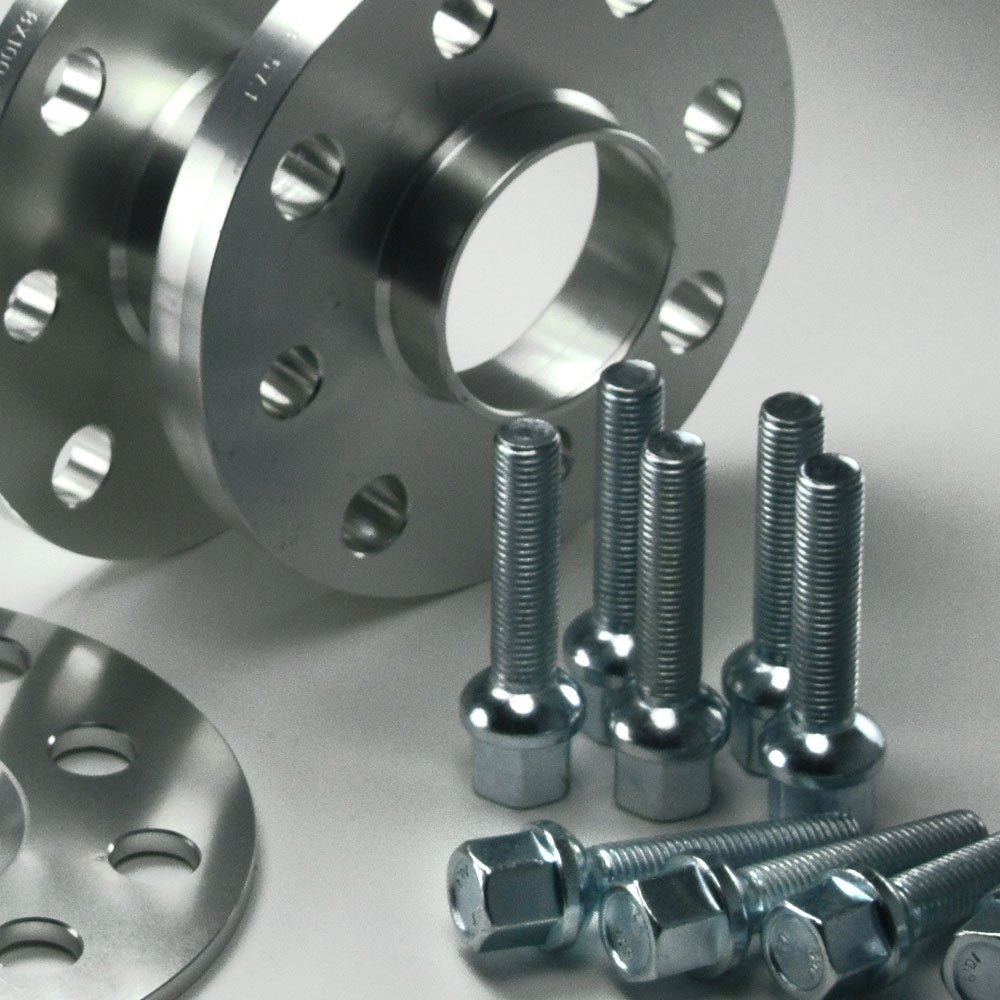

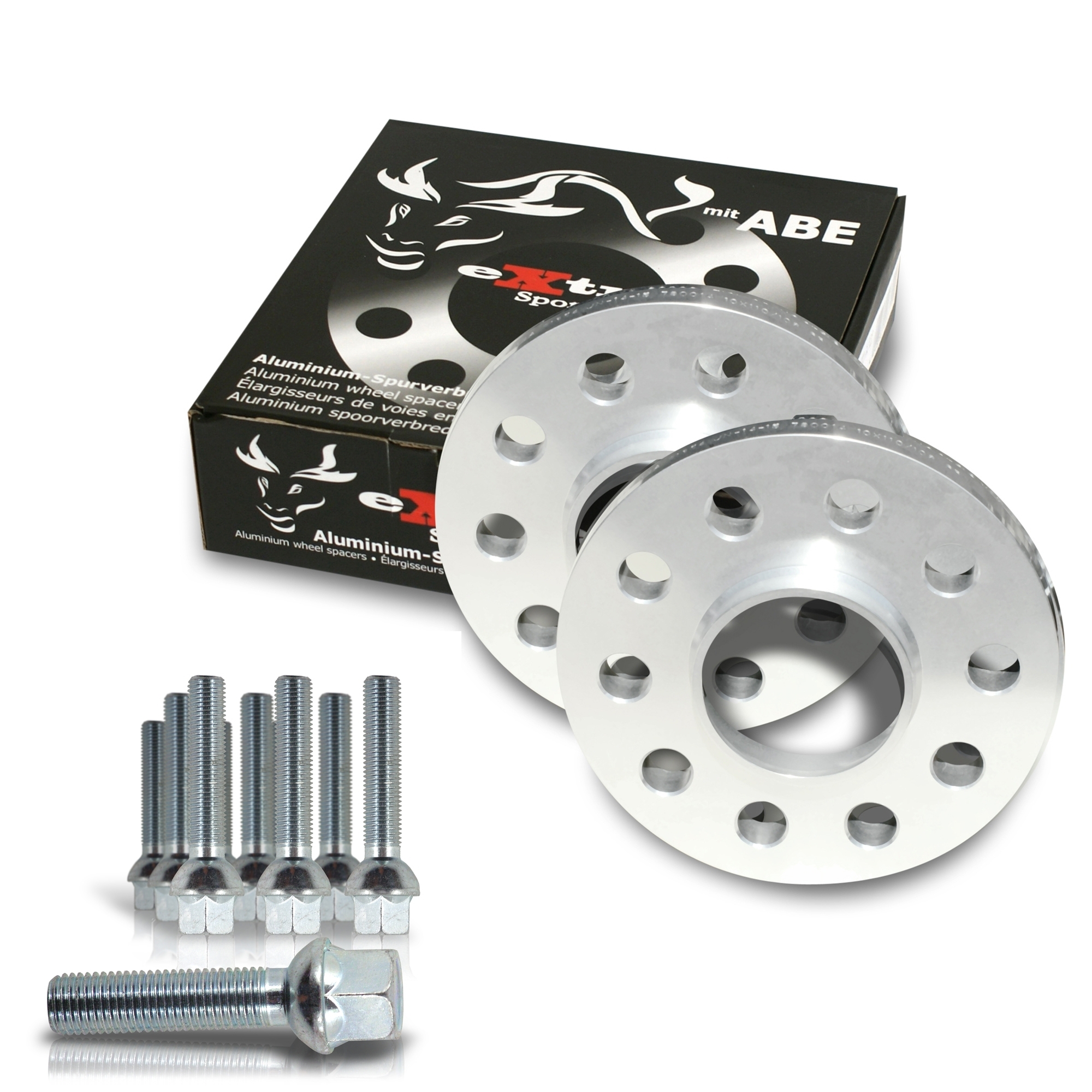

Wheel spacer kit 30mm incl. wheel bolts, for VW Passat 3B / 3BG

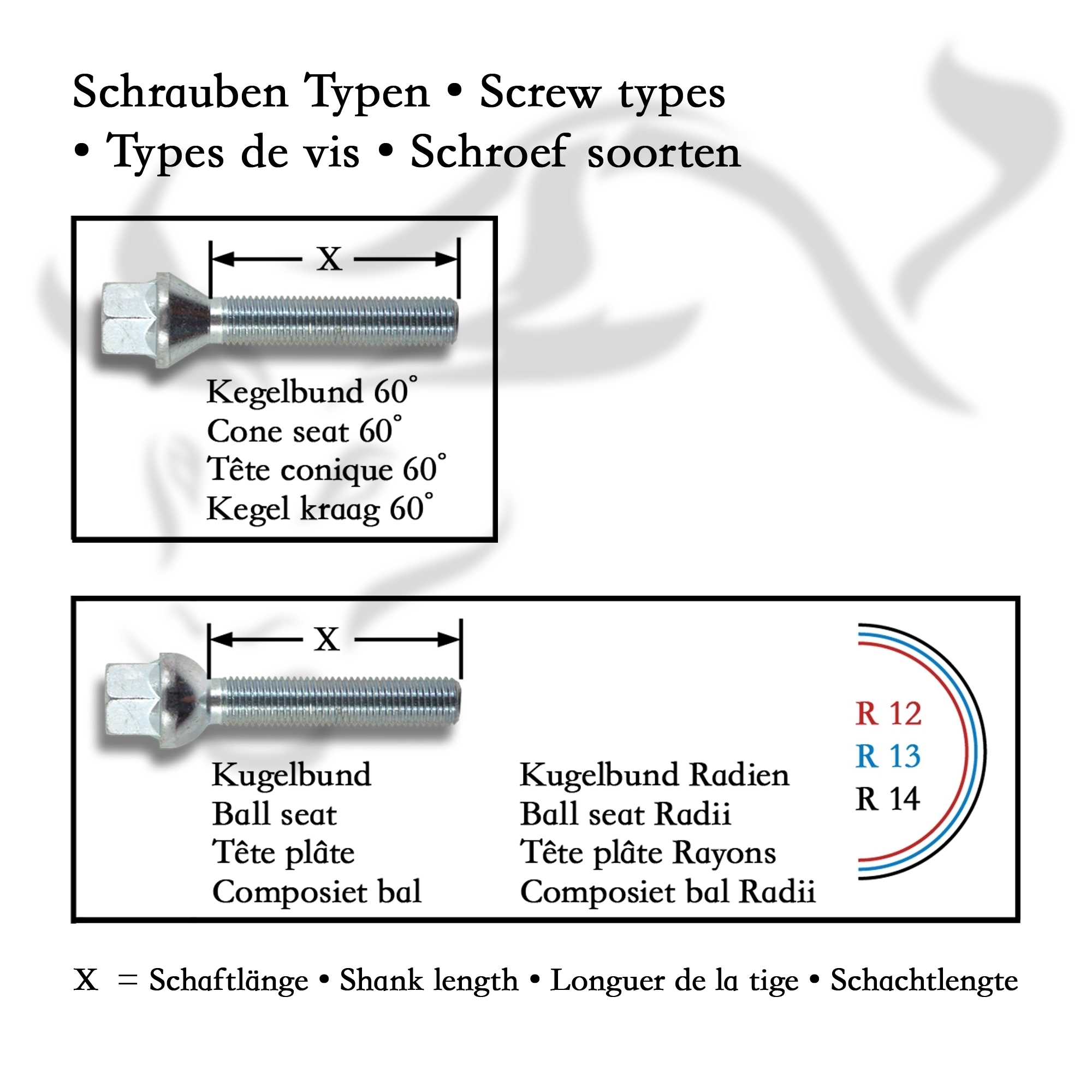

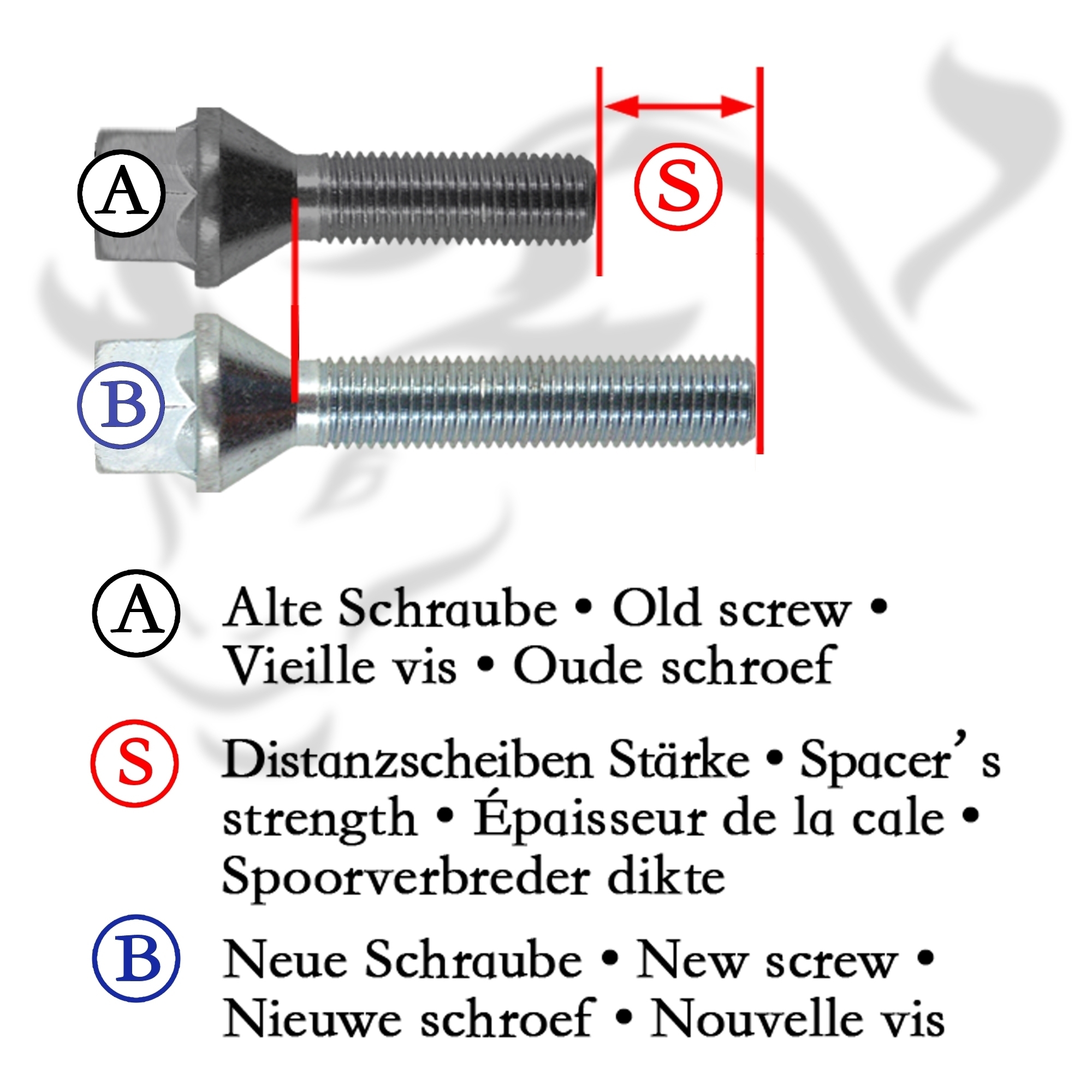

NJT alum. wheel spacers 30mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 30mm per axle (15mm each side) - with centering element - hole circle 5x100 / 5x112 - hub hole bore 57,1mm -10x spherical wheel bolts M14x1,5 41mm Suitable for: Volkswagen: Passat (3B) Passat (3BG / 3BL / 3BS) - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
68,95 € RRP 74,95 €
🟢 Sofort versandfähig, ausreichende Stückzahl
Product.Nr.: 790534 790534
EAN: 4048961101516 4048961101516
Manufacturer: NJT GbR NJT GbR
weight: 1,95 kg 1.9500 kg
product description
- - all NJT-Extrem wheel spacers are made of high strength aluminium
- - additionally anodized, so that there is no chance for rust to set in
- - with general operating permit / ABE (valid for the designated wheel/tire combinations)
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
Manufacturer | Vehicle | Construction year | HSN/TSN |
---|---|---|---|
VW | Passat 1.6 1595 ccm, 74 KW, 101 PSHSN / TSN: 0603|343 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|343 |
VW | Passat 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|611 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|611 |
VW | Passat 1.8 1781 ccm, 92 KW, 125 PSHSN / TSN: 0603|345 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|345 |
VW | Passat 1.8 Syncro/4motion 1781 ccm, 92 KW, 125 PSHSN / TSN: 0603|368 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|368 |
VW | Passat 1.8 T 1781 ccm, 110 KW, 150 PSHSN / TSN: 0603|346 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|346 |
VW | Passat 1.8 T 1781 ccm, 125 KW, 170 PSPlattform : 3B3 | 02.2001 - 05.2005 | |
VW | Passat 1.8 T 20V 1781 ccm, 110 KW, 150 PSHSN / TSN: 0603|617 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|617 |
VW | Passat 1.8 T 4motion 1781 ccm, 125 KW, 170 PSPlattform : 3B3 | 03.2001 - 05.2005 | |
VW | Passat 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0603|342 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|342 |
VW | Passat 1.9 TDI 1896 ccm, 74 KW, 101 PSHSN / TSN: 0603|570 Plattform : 3B2 |
02.2000 - 11.2000 | 0603|570 |
VW | Passat 1.9 TDI 1896 ccm, 74 KW, 101 PSHSN / TSN: 0603|613 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|613 |
VW | Passat 1.9 TDI 1896 ccm, 81 KW, 110 PSHSN / TSN: 0603|344 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|344 |
VW | Passat 1.9 TDI 1896 ccm, 85 KW, 115 PSHSN / TSN: 0603|475 Plattform : 3B2 |
08.1998 - 11.2000 | 0603|475 |
VW | Passat 1.9 TDI 1896 ccm, 96 KW, 130 PSHSN / TSN: 0603|615 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|615 |
VW | Passat 1.9 TDI 4motion 1896 ccm, 85 KW, 115 PSHSN / TSN: 0603|551 Plattform : 3B2 |
08.1999 - 11.2000 | 0603|551 |
VW | Passat 1.9 TDI 4motion 1896 ccm, 96 KW, 130 PSHSN / TSN: 0603|625<>0603|718 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|625<>0603|718 |
VW | Passat 1.9 TDI Syncro/4motion 1896 ccm, 81 KW, 110 PSHSN / TSN: 0603|370 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|370 |
VW | Passat 2.0 1984 ccm, 85 KW, 115 PSHSN / TSN: 0603|619 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|619 |
VW | Passat 2.0 1984 ccm, 88 KW, 120 PSHSN / TSN: 0603|554 Plattform : 3B2 |
04.2000 - 11.2000 | 0603|554 |
VW | Passat 2.0 1984 ccm, 96 KW, 130 PSHSN / TSN: 0603|671 Plattform : 3B3 |
11.2001 - 05.2005 | 0603|671 |
VW | Passat 2.0 4motion 1984 ccm, 85 KW, 115 PSHSN / TSN: 0603|627 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|627 |
VW | Passat 2.0 4motion 1984 ccm, 88 KW, 120 PSHSN / TSN: 0603|555 Plattform : 3B2 |
04.2000 - 11.2000 | 0603|555 |
VW | Passat 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|734 Plattform : 3B3 |
12.2003 - 05.2005 | 0603|734 |
VW | Passat 2.3 V5 2324 ccm, 125 KW, 170 PSHSN / TSN: 0603|621 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|621 |
VW | Passat 2.3 V5 4motion 2324 ccm, 125 KW, 170 PSHSN / TSN: 0603|629 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|629 |
VW | Passat 2.3 VR5 2324 ccm, 110 KW, 150 PSHSN / TSN: 0603|347 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|347 |
VW | Passat 2.3 VR5 Syncro/4motion 2324 ccm, 110 KW, 150 PSHSN / TSN: 0603|447 Plattform : 3B2 |
10.1997 - 11.2000 | 0603|447 |
VW | Passat 2.5 TDI 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|473 Plattform : 3B2 |
07.1998 - 11.2000 | 0603|473 |
VW | Passat 2.5 TDI 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|608 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|608 |
VW | Passat 2.5 TDI 2496 ccm, 120 KW, 163 PSHSN / TSN: 0603|716 Plattform : 3B3 |
05.2003 - 05.2005 | 0603|716 |
VW | Passat 2.5 TDI 4motion 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|609 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|609 |
VW | Passat 2.5 TDI 4motion 2496 ccm, 132 KW, 180 PSHSN / TSN: 0603|704 Plattform : 3B3 |
01.2003 - 05.2005 | 0603|704 |
VW | Passat 2.5 TDI Syncro/4motion 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|495 Plattform : 3B2 |
12.1998 - 11.2000 | 0603|495 |
VW | Passat 2.8 4motion 2771 ccm, 142 KW, 193 PSHSN / TSN: 0603|623<>0603|642 Plattform : 3B3 |
11.2000 - 05.2005 | 0603|623<>0603|642 |
VW | Passat 2.8 V6 2771 ccm, 132 KW, 180 PSPlattform : 3B2 | 05.1997 - 09.1999 | |
VW | Passat 2.8 V6 2771 ccm, 140 KW, 190 PSPlattform : 3B2 | 09.1999 - 11.2000 | |
VW | Passat 2.8 V6 2771 ccm, 142 KW, 193 PSHSN / TSN: 0603|348 Plattform : 3B2 |
08.1996 - 11.2000 | 0603|348 |
VW | Passat 2.8 V6 Syncro/4motion 2771 ccm, 142 KW, 193 PSHSN / TSN: 0603|352 Plattform : 3B2 |
10.1996 - 11.2000 | 0603|352 |
VW | Passat 4.0 W8 4motion 3999 ccm, 202 KW, 275 PSHSN / TSN: 0603|650<>0603|672 Plattform : 3B3 |
09.2001 - 09.2004 | 0603|650<>0603|672 |
VW | Passat Variant 1.6 1595 ccm, 74 KW, 101 PSHSN / TSN: 0603|360 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|360 |
VW | Passat Variant 1.6 1595 ccm, 75 KW, 102 PSHSN / TSN: 0603|610 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|610 |
VW | Passat Variant 1.8 1781 ccm, 92 KW, 125 PSHSN / TSN: 0603|362 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|362 |
VW | Passat Variant 1.8 Syncro/4motion 1781 ccm, 92 KW, 125 PSHSN / TSN: 0603|369 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|369 |
VW | Passat Variant 1.8 T 1781 ccm, 110 KW, 150 PSHSN / TSN: 0603|363 Plattform : 3B5 |
05.1997 - 11.2000 | 0603|363 |
VW | Passat Variant 1.8 T 1781 ccm, 125 KW, 170 PSPlattform : 3B6 | 05.2002 - 08.2005 | |
VW | Passat Variant 1.8 T 20V 1781 ccm, 110 KW, 150 PSHSN / TSN: 0603|616 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|616 |
VW | Passat Variant 1.9 TDI 1896 ccm, 66 KW, 90 PSHSN / TSN: 0603|359 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|359 |
VW | Passat Variant 1.9 TDI 1896 ccm, 74 KW, 101 PSHSN / TSN: 0603|571 Plattform : 3B5 |
02.2000 - 11.2000 | 0603|571 |
VW | Passat Variant 1.9 TDI 1896 ccm, 74 KW, 101 PSHSN / TSN: 0603|612 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|612 |
VW | Passat Variant 1.9 TDI 1896 ccm, 81 KW, 110 PSHSN / TSN: 0603|361 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|361 |
VW | Passat Variant 1.9 TDI 1896 ccm, 85 KW, 115 PSHSN / TSN: 0603|476 Plattform : 3B5 |
08.1998 - 11.2000 | 0603|476 |
VW | Passat Variant 1.9 TDI 1896 ccm, 96 KW, 130 PSHSN / TSN: 0603|614 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|614 |
VW | Passat Variant 1.9 TDI 4motion 1896 ccm, 85 KW, 115 PSHSN / TSN: 0603|552 Plattform : 3B5 |
08.1999 - 11.2000 | 0603|552 |
VW | Passat Variant 1.9 TDI 4motion 1896 ccm, 96 KW, 130 PSHSN / TSN: 0603|624 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|624 |
VW | Passat Variant 1.9 TDI Syncro/4motion 1896 ccm, 81 KW, 110 PSHSN / TSN: 0603|371 Plattform : 3B5 |
06.1997 - 08.2000 | 0603|371 |
VW | Passat Variant 2.0 1984 ccm, 85 KW, 115 PSHSN / TSN: 0603|618 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|618 |
VW | Passat Variant 2.0 1984 ccm, 88 KW, 120 PSHSN / TSN: 0603|556 Plattform : 3B5 |
04.2000 - 11.2000 | 0603|556 |
VW | Passat Variant 2.0 1984 ccm, 96 KW, 130 PSHSN / TSN: 0603|670 Plattform : 3B6 |
11.2001 - 05.2005 | 0603|670 |
VW | Passat Variant 2.0 4motion 1984 ccm, 85 KW, 115 PSHSN / TSN: 0603|626 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|626 |
VW | Passat Variant 2.0 4motion 1984 ccm, 88 KW, 120 PSHSN / TSN: 0603|557 Plattform : 3B5 |
04.2000 - 11.2000 | 0603|557 |
VW | Passat Variant 2.0 TDI 1968 ccm, 100 KW, 136 PSHSN / TSN: 0603|735 Plattform : 3B6 |
12.2003 - 05.2005 | 0603|735 |
VW | Passat Variant 2.3 VR5 2324 ccm, 110 KW, 150 PSHSN / TSN: 0603|364 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|364 |
VW | Passat Variant 2.3 VR5 2324 ccm, 125 KW, 170 PSHSN / TSN: 0603|620 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|620 |
VW | Passat Variant 2.3 VR5 4motion 2324 ccm, 125 KW, 170 PSHSN / TSN: 0603|628 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|628 |
VW | Passat Variant 2.3 VR5 Syncro/4motion 2324 ccm, 110 KW, 150 PSHSN / TSN: 0603|448 Plattform : 3B5 |
10.1997 - 11.2000 | 0603|448 |
VW | Passat Variant 2.5 TDI 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|474 Plattform : 3B5 |
07.1998 - 11.2000 | 0603|474 |
VW | Passat Variant 2.5 TDI 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|606 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|606 |
VW | Passat Variant 2.5 TDI 2496 ccm, 120 KW, 163 PSHSN / TSN: 0603|717 Plattform : 3B6 |
05.2003 - 05.2005 | 0603|717 |
VW | Passat Variant 2.5 TDI 4motion 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|607 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|607 |
VW | Passat Variant 2.5 TDI 4motion 2496 ccm, 132 KW, 180 PSHSN / TSN: 0603|703 Plattform : 3B6 |
01.2003 - 05.2005 | 0603|703 |
VW | Passat Variant 2.5 TDI Syncro/4motion 2496 ccm, 110 KW, 150 PSHSN / TSN: 0603|496 Plattform : 3B5 |
12.1998 - 11.2000 | 0603|496 |
VW | Passat Variant 2.8 4motion 2771 ccm, 142 KW, 193 PSHSN / TSN: 0603|622 Plattform : 3B6 |
11.2000 - 05.2005 | 0603|622 |
VW | Passat Variant 2.8 V6 2771 ccm, 142 KW, 193 PSHSN / TSN: 0603|365 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|365 |
VW | Passat Variant 2.8 V6 Syncro/4motion 2771 ccm, 142 KW, 193 PSHSN / TSN: 0603|367 Plattform : 3B5 |
06.1997 - 11.2000 | 0603|367 |
VW | Passat Variant 4.0 W8 4motion 3999 ccm, 202 KW, 275 PSHSN / TSN: 0603|651 Plattform : 3B6 |
09.2001 - 09.2004 | 0603|651 |
