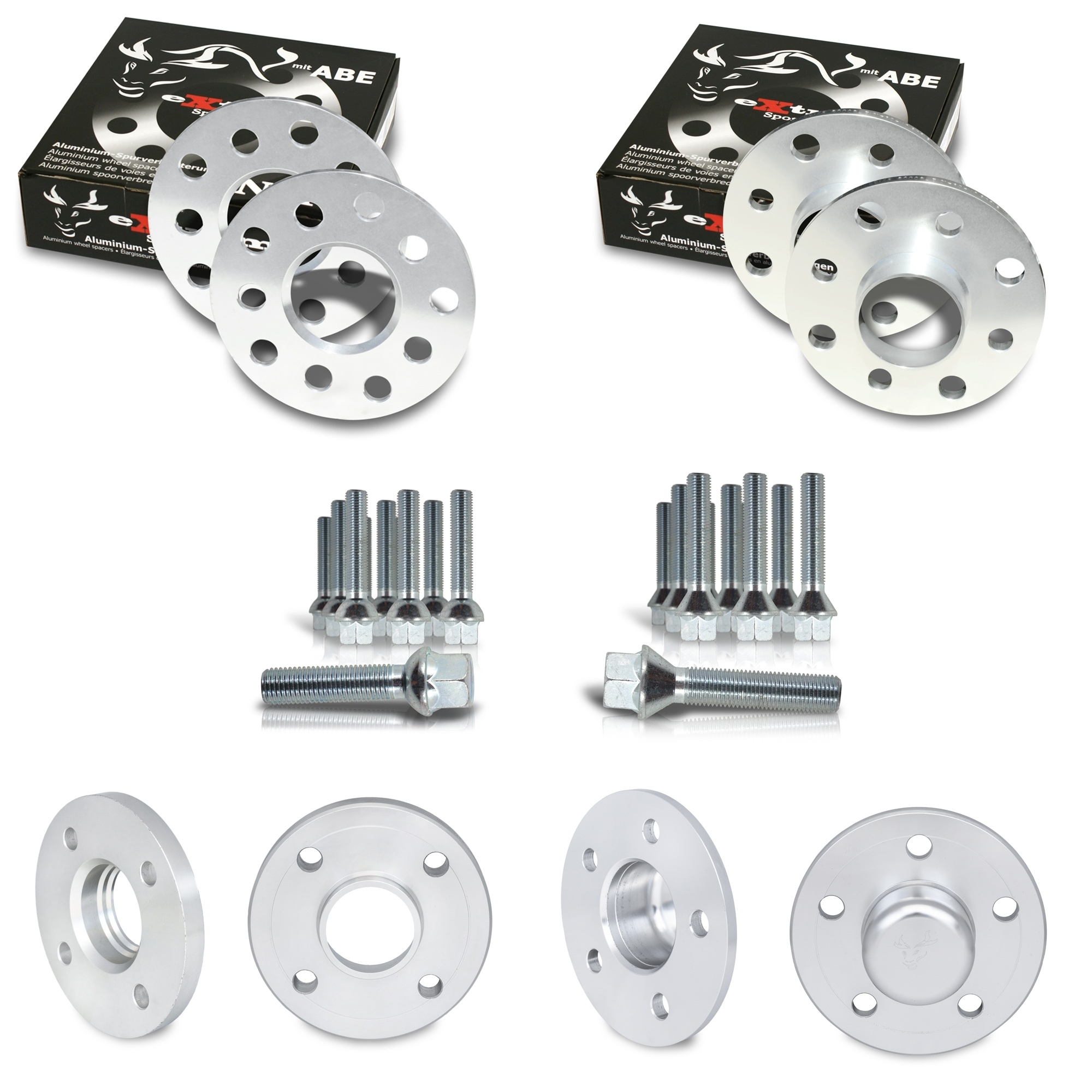

Wheel spacer kit 40mm incl. wheel bolts suitable for Skoda Fabia (5J)
NJT alum. wheel spacers 40mm incl. wheel bolts with general operating permit (ABE)! wheel spacer kit - 40mm per axle (20mm each side) - with centering element - hole circle 5x100 / 5x112 - hub hole bore 57,1mm - 10x black conical wheel bolts M14x1,5 50mm Suitable for: Skoda: Fabia (5J) - all NJT-Extrem wheel spacers are made of high strength aluminium - additionally anodized, so that there is no chance for rust to set in - with general operating permit / ABE (valid for the designated wheel/tire combinations) Determining the required wheel bolt length: - measure shaft length of the original wheel bolt in mm - add the original shaft length to the wheel spacer width - example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length - check whether conical or spherical collar bolts are required- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)
- Wheel spacer kit 40mm incl. wheel bolts, Skoda Fabia (5J)
product description
NJT alum. wheel spacers 40mm incl. wheel bolts
with general operating permit (ABE)!
wheel spacer kit
- 40mm per axle (20mm each side)
- with centering element
- hole circle 5x100 / 5x112
- hub hole bore 57,1mm
- 10x black conical wheel bolts M14x1,5 50mm
Suitable for:
Skoda:
Fabia (5J)
- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)
Determining the required wheel bolt length:
- measure shaft length of the original wheel bolt in mm
- add the original shaft length to the wheel spacer width
- example: original shaft length 25mm + 5mm wheel spacer (each side) = 30mm new wheel bolt length
- check whether conical or spherical collar bolts are required
- all NJT-Extrem wheel spacers are made of high strength aluminium
- additionally anodized, so that there is no chance for rust to set in
- with general operating permit / ABE (valid for the designated wheel/tire combinations)
- Wheel spacer kit 40mm incl. wheel bolts, Skoda Fabia (5J)
Product variations
safety notice
Warning: Professional installation recommended
Manufacturer identification
Manufacturer identification
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
EU economic operator
Name: NJT GBRE-Mail adress: info@njt-tuning.de
Streetaddress: Harpener Hellweg 16
ZIP Code: 44805
City: Bochum
Country: DE
Phone: 0234/902950
Compatibility
| Manufacturer | Vehicle | Construction year | HSN/TSN |
|---|---|---|---|
| Skoda | Fabia II 1.2 1198 ccm, 44 KW, 60 PSHSN / TSN: 8004|AFG Plattform : 542 |
12.2006 - 12.2014 | 8004|AFG |
| Skoda | Fabia II 1.2 1198 ccm, 51 KW, 70 PSHSN / TSN: 8004|AFH Plattform : 542 |
01.2007 - 12.2014 | 8004|AFH |
| Skoda | Fabia II 1.2 12V 1198 ccm, 44 KW, 60 PSHSN / TSN: 8004|AFG Plattform : 542 |
11.2011 - 12.2014 | 8004|AFG |
| Skoda | Fabia II 1.2 LPG 1198 ccm, 44 KW, 60 PSPlattform : 542 | 03.2009 - 11.2011 | |
| Skoda | Fabia II 1.2 LPG 1198 ccm, 51 KW, 69 PSPlattform : 542 | 07.2007 - 11.2014 | |
| Skoda | Fabia II 1.2 TDi 1199 ccm, 55 KW, 75 PSHSN / TSN: 8004|AJQ Plattform : 542 |
05.2010 - 12.2014 | 8004|AJQ |
| Skoda | Fabia II 1.2 TSI 1197 ccm, 63 KW, 86 PSHSN / TSN: 8004|AJW Plattform : 542 |
03.2010 - 12.2014 | 8004|AJW |
| Skoda | Fabia II 1.2 TSI 1197 ccm, 77 KW, 105 PSHSN / TSN: 8004|AJY Plattform : 542 |
03.2010 - 12.2014 | 8004|AJY |
| Skoda | Fabia II 1.4 1390 ccm, 63 KW, 86 PSHSN / TSN: 8004|AFK Plattform : 542 |
01.2007 - 12.2014 | 8004|AFK |
| Skoda | Fabia II 1.4 LPG 1390 ccm, 63 KW, 86 PSPlattform : 542 | 01.2007 - 11.2014 | |
| Skoda | Fabia II 1.4 TDi 1422 ccm, 51 KW, 70 PSHSN / TSN: 8004|AFI Plattform : 542 |
02.2007 - 03.2010 | 8004|AFI |
| Skoda | Fabia II 1.4 TDi 1422 ccm, 59 KW, 80 PSHSN / TSN: 8004|AFJ Plattform : 542 |
01.2007 - 03.2010 | 8004|AFJ |
| Skoda | Fabia II 1.4 TSI RS 1390 ccm, 132 KW, 180 PSHSN / TSN: 8004|AKK Plattform : 542 |
05.2010 - 12.2014 | 8004|AKK |
| Skoda | Fabia II 1.6 1598 ccm, 77 KW, 105 PSHSN / TSN: 8004|AFL Plattform : 542 |
04.2007 - 12.2014 | 8004|AFL |
| Skoda | Fabia II 1.6 TDi 1598 ccm, 55 KW, 75 PSHSN / TSN: 8004|AKF Plattform : 542 |
04.2010 - 12.2014 | 8004|AKF |
| Skoda | Fabia II 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 8004|AJS Plattform : 542 |
03.2010 - 12.2014 | 8004|AJS |
| Skoda | Fabia II 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 8004|AKC Plattform : 542 |
03.2010 - 12.2014 | 8004|AKC |
| Skoda | Fabia II 1.9 TDi 1896 ccm, 77 KW, 105 PSHSN / TSN: 8004|AFM Plattform : 542 |
04.2007 - 03.2010 | 8004|AFM |
| Skoda | Fabia II Combi 1.2 1198 ccm, 44 KW, 60 PSHSN / TSN: 8004|AGC<>8004|ALC Plattform : 545 |
10.2007 - 11.2014 | 8004|AGC<>8004|ALC |
| Skoda | Fabia II Combi 1.2 1198 ccm, 51 KW, 70 PSHSN / TSN: 8004|AFW Plattform : 545 |
10.2007 - 12.2014 | 8004|AFW |
| Skoda | Fabia II Combi 1.2 12V 1198 ccm, 44 KW, 60 PSHSN / TSN: 8004|AGC<>8004|ALC Plattform : 545 |
11.2011 - 12.2014 | 8004|AGC<>8004|ALC |
| Skoda | Fabia II Combi 1.2 LPG 1198 ccm, 44 KW, 60 PSPlattform : 545 | 03.2009 - 11.2011 | |
| Skoda | Fabia II Combi 1.2 LPG 1198 ccm, 51 KW, 69 PSPlattform : 545 | 10.2007 - 11.2014 | |
| Skoda | Fabia II Combi 1.2 TDi 1199 ccm, 55 KW, 75 PSHSN / TSN: 8004|AJR<>8004|AKZ Plattform : 545 |
05.2010 - 12.2014 | 8004|AJR<>8004|AKZ |
| Skoda | Fabia II Combi 1.2 TSI 1197 ccm, 63 KW, 86 PSHSN / TSN: 8004|AJX Plattform : 545 |
03.2010 - 12.2014 | 8004|AJX |
| Skoda | Fabia II Combi 1.2 TSI 1197 ccm, 77 KW, 105 PSHSN / TSN: 8004|AJZ Plattform : 545 |
03.2010 - 12.2014 | 8004|AJZ |
| Skoda | Fabia II Combi 1.4 1390 ccm, 63 KW, 86 PSHSN / TSN: 8004|AFZ Plattform : 545 |
10.2007 - 12.2014 | 8004|AFZ |
| Skoda | Fabia II Combi 1.4 LPG 1390 ccm, 63 KW, 86 PSPlattform : 545 | 10.2007 - 11.2014 | |
| Skoda | Fabia II Combi 1.4 TDi 1422 ccm, 51 KW, 70 PSHSN / TSN: 8004|AFX Plattform : 545 |
10.2007 - 03.2010 | 8004|AFX |
| Skoda | Fabia II Combi 1.4 TDi 1422 ccm, 59 KW, 80 PSHSN / TSN: 8004|AFY Plattform : 545 |
10.2007 - 03.2010 | 8004|AFY |
| Skoda | Fabia II Combi 1.4 TSI RS 1390 ccm, 132 KW, 180 PSHSN / TSN: 8004|AKL Plattform : 545 |
05.2010 - 12.2014 | 8004|AKL |
| Skoda | Fabia II Combi 1.6 1598 ccm, 77 KW, 105 PSHSN / TSN: 8004|AGA Plattform : 545 |
10.2007 - 12.2014 | 8004|AGA |
| Skoda | Fabia II Combi 1.6 TDi 1598 ccm, 55 KW, 75 PSHSN / TSN: 8004|AKG Plattform : 545 |
04.2010 - 12.2014 | 8004|AKG |
| Skoda | Fabia II Combi 1.6 TDi 1598 ccm, 66 KW, 90 PSHSN / TSN: 8004|AJT Plattform : 545 |
03.2010 - 12.2014 | 8004|AJT |
| Skoda | Fabia II Combi 1.6 TDi 1598 ccm, 77 KW, 105 PSHSN / TSN: 8004|AKD Plattform : 545 |
03.2010 - 12.2014 | 8004|AKD |
| Skoda | Fabia II Combi 1.9 TDi 1896 ccm, 77 KW, 105 PSHSN / TSN: 8004|AGB Plattform : 545 |
10.2007 - 03.2010 | 8004|AGB |
